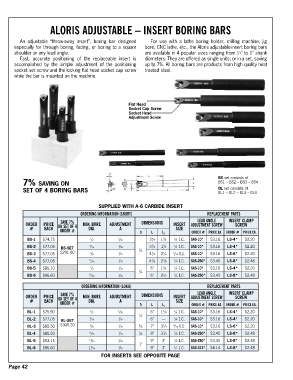

ALORIS ADJUSTABLE – INSERT BORING BARS

An adjustable “throw-away insert”, boring bar designed For use with a lathe boring holder, milling machine, jig
especially for through boring, facing, or boring to a square bore, CNC lathe, etc., the Aloris adjustable-insert boring bars
1
shoulder or any lead angle. are available in 4 popular sizes ranging from / 2" to 1" shank
Fast, accurate positioning of the replaceable insert is diameters. They are offered as single units; or in a set, saving
accomplished by the simple adjustment of the positioning up to 7%. All boring bars are products from high quality heat
socket set screw and the locking flat head socket cap screw treated steel.
while the bar is mounted on the machine.

Flat Head
Socket Cap Screw
Socket Head
Adjustment Screw

BS set consists of
7% SAVING ON BS1 – BS2 – BS3 – BS4
SET OF 4 BORING BARS BL set consists of
BL1 – BL2 – BL3 – BL4

SUPPLIED WITH A-6 CARBIDE INSERT
ORDERING INFORMATION (SHORT) REPLACEMENT PARTS
SAVE 7% DIMENSIONS LEAD ANGLE INSERT CLAMP
ORDER PRICE MIN. BORE ADJUSTMENT INSERT ADJUSTMENT SCREW SCREW
# EACH ON SET OF 4 DIA. A SIZE
ORDER # D L L 1 ORDER # PRICE EA. ORDER # PRICE EA.
3
3
BS-1 $74.75 1 /2 1 /32 3 /4 1 /4 1 /4 I.C. SAS-10* $3.16 LS-4* $2.20
7
7
BS-2 $77.05 BS-SET 9 /16 1 /32 3 3 /8 1/8 1 /4 I.C. SAS-10* $3.16 LS-4* $2.20
1
1
BS-3 $77.05 $291.00 5 /8 1 /32 /4 4 /4 2 /4 5 /16 I.C. SAS-10* $3.16 LS-6* $2.20
3
3
BS-4 $77.05 11 /16 1 /32 4 /8 2 /8 3 /8 I.C. SAS-250* $3.45 LS-8* $2.48
3
BS-5 $85.10 1 /2 1 /32 6" 1 /4 1 /4 I.C. SAS-10* $3.16 LS-4* $2.20
3
/4
1
BS-6 $96.60 11 /16 1 /32 6" 2 /2 3 /8 I.C. SAS-250* $3.45 LS-8* $2.48
ORDERING INFORMATION (LONG) REPLACEMENT PARTS
SAVE 7% DIMENSIONS LEAD ANGLE INSERT CLAMP
ORDER PRICE MIN. BORE ADJUSTMENT INSERT ADJUSTMENT SCREW SCREW
# EACH ON SET OF 4 DIA. A SIZE
ORDER # D L L 1 ORDER # PRICE EA. ORDER # PRICE EA.
3
BL-1 $75.90 1 /2 1 /32 5" 1 /8 1 /4 I.C. SAS-10* $3.16 LS-4* $2.20
1
/2
BL-2 $77.05 BL-SET 9 /16 1 /32 6" — 1 /4 I.C. SAS-10* $3.16 LS-4* $2.20
1
BL-3 $80.50 $300.20 5 /8 1 /32 5 /8 7" 3 /4 5 /16 I.C. SAS-10* $3.16 LS-6* $2.20
3
BL-4 $80.50 11 /16 1 /32 3 /4 8" 3 /4 3 /8 I.C. SAS-250* $3.45 LS-8* $2.48
BL-5 $93.15 13 /16 1 /32 9" 3" 3 /8 I.C. SAS-250* $3.45 LS-8* $2.48
1"
1
BL-6 $96.60 1/16 1 /32 9" 3" 1 /2 I.C. SAS-312* $4.14 LS-8* $2.48
FOR INSERTS SEE OPPOSITE PAGE
