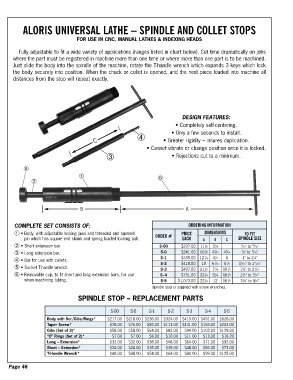

ALORIS UNIVERSAL LATHE – SPINDLE AND COLLET STOPS

FOR USE IN CNC, MANUAL LATHES & INDEXING HEADS

Fully adjustable to fit a wide variety of applications (ranges listed in chart below). Cut time dramatically on jobs
where the part must be registered in machine more than one time or where more than one part is to be machined.
Just slide the body into the spindle of the machine, rotate the T-handle wrench which expands 3 keys which lock
the body securely into position. When the chuck or collet is opened, and the next piece loaded into machine all
distances from the stop will repeat exactly.

DESIGN FEATURES:
• Completely self-centering.
• Only a few seconds to install.

C • Greater rigidity – insures duplication.
• Cannot vibrate or change position once it is locked.
• Rejections cut to a minimum.

B A

COMPLETE SET CONSISTS OF: ORDERING INFORMATION
• Body, with adjustable locking jaws and threaded and tapered ORDER # PRICE DIMENSIONS TO FIT
pin which has square end shank and spring loaded locking ball. EACH A B C SPINDLE SIZE
• Short extension bar. S-00 $237.00 11/ 4 3 /4 9 /16" to /32"
23
1
1
5
7
15
5
• Long extension bar. S-0 $241.00 10 /8 4 / 16 4 / 16 3 / 4" to /16"
1
1
S-1 $339.00 12 /4 4/2 6 1" to 1/4"
1
• Bar for use with collets.
7
5
1
11
S-2 $418.00 19 6 /16 6 /2 1/16" to 1 /16"
• Socket T-handle wrench. S-3 $497.00 21/2 7 /8 10 /2 1 / 4" to 2 /16"
7
1
7
3
1
• Removable cup, to fit short and long extension bars, for use S-4 $751.00 22/4 9 /4 10 /2 2 /2" to 3 /2"
1
1
1
1
1
when machining tubing. S-5 $1,073.00 22/4 12 10 /2 3 /8" to 4 /2"
1
1
5
1
Spindle stop is supplied with screw wrenches.
SPINDLE STOP – REPLACEMENT PARTS
S-00 S-0 S-1 S-2 S-3 S-4 S-5
Body with Scr/Gibs/Rings* $217.00 $218.00 $236.00 $324.00 $419.00 $491.00 $626.00
Taper Screw* $76.00 $76.00 $82.00 $111.00 $141.00 $159.00 $202.00
Gibs (Set of 3)* $58.00 $58.00 $64.00 $82.00 $94.00 $102.00 $129.00
“O” Rings (Set of 2)* $7.00 $7.00 $8.00 $10.00 $11.00 $13.00 $16.20
Long – Extension* $32.00 $32.00 $38.00 $48.00 $64.00 $71.00 $92.00
Short – Extension* $24.00 $24.00 $35.00 $39.00 $48.00 $56.00 $71.00
T-Handle Wrench* $48.00 $48.00 $54.00 $64.00 $80.00 $99.00 $125.00
