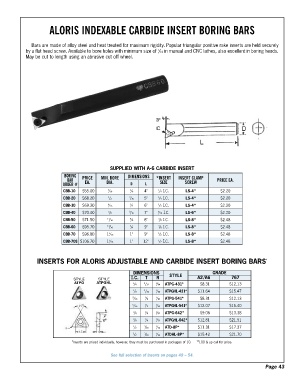

ALORIS INDEXABLE CARBIDE INSERT BORING BARS

Bars are made of alloy steel and heat treated for maximum rigidity. Popular triangular positive rake inserts are held securely
7
by a flat head screw. Available to bore holes with minimum size of /16 in manual and CNC lathes, also excellent in boring heads.
May be cut to length using an abrasive cut off wheel.

SUPPLIED WITH A-6 CARBIDE INSERT
BORING DIMENSIONS
BAR PRICE MIN. BORE *INSERT INSERT CLAMP PRICE EA.
ORDER # EA. DIA. D L SIZE SCREW
CBB-10 $55.00 7 /16 3 /8 4" 1 /4 I.C. LS-4* $2.20
CBB-20 $68.20 1 /2 7 /16 5" 1 /4 I.C. LS-4* $2.20
CBB-30 $69.30 9 /16 1 /2 6" 1 /4 I.C. LS-4* $2.20
CBB-40 $70.40 5 /8 9 /16 7" 5 /16 I.C. LS-6* $2.20
CBB-50 $71.50 11 /16 5 /8 8" 3 /8 I.C. LS-8* $2.48
CBB-60 $95.70 13 /16 3 / 4 9" 3 /8 I.C. LS-8* $2.48
1
CBB-70 $96.80 1/16 1" 9" 1 /2 I.C. LS-8* $2.48
1
CBB-70S $106.70 1/16 1" 12" 1 /2 I.C. LS-8* $2.48

INSERTS FOR ALORIS ADJUSTABLE AND CARBIDE INSERT BORING BARS

DIMENSIONS STYLE GRADE
STYLE STYLE I.C. T R A2/A6 767
ATPG ATPGHL 1 3 1
/4 /32 /64 ATPG-431* $8.31 $12.13
1 3 1 ATPGHL-431* $11.64 $15.47
/4 /32 /64
5 1 1 ATPG-541* $8.31 $12.13
/16 /8 /64
5 7 1 ATPGHL-541* $12.07 $15.40
/16 /8 /64
3 1 1 ATPG-642* $9.06 $13.38
/8 /8 /32
3 1 1 ATPGHL-642* $12.81 $21.51
/8 /8 /32
1 3 1 ATD-8P* $11.31 $17.37
/2 /16 /32
1 3 1 ATDHL-8P* $15.42 $21.70
/2 /16 /32

Inserts are priced individually, however, they must be purchased in packages of 10. 100 & up call for price.
See full selection of inserts on pages 49 – 54.
