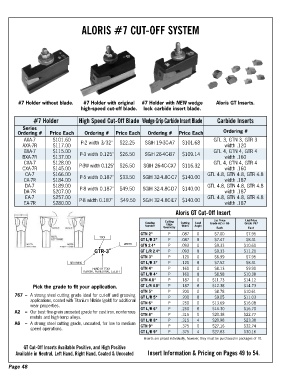

ALORIS #7 CUT-OFF SYSTEM

#7 Holder without blade. #7 Holder with original #7 Holder with NEW wedge Aloris GT Inserts.
high-speed cut-off blade. lock carbide insert blade.

#7 Holder High Speed Cut-Off Blade Wedge GripCarbide Insert Blade Carbide Inserts
Series
Ordering # Price Each Ordering # Price Each Ordering # Price Each Ordering #
AXA-7 $101.60 GTL 3, GTN 3, GTR 3
AXA-7R $117.00 P-2 width 3/32" $22.25 SGIH 19-3C-A7 $101.68 width .120
BXA-7 $115.00 GTL 4, GTN 4, GTR 4
BXA-7R $137.00 P-3 width 0.125" $26.50 SGIH 26-4C-B7 $109.14 width .160
CXA-7 $128.00 GTL 4, GTN 4, GTR 4
CXA-7R $145.00 P-3W width 0.125" $26.50 SGIH 26-4C-CX7 $116.32 width .160
CA-7 $166.00 GTL 4.8, GTN 4.8, GTR 4.8
CA-7R $184.00 P-5 width 0.187" $33.50 SGIH 32-4.8C-C7 $140.00 width .187
DA-7 $189.00 GTL 4.8, GTN 4.8, GTR 4.8
DA-7R $207.00 P-8 width 0.187" $49.50 SGIH 32-4.8C-D7 $140.00 width .187
EA-7 $257.00 GTL 4.8, GTN 4.8, GTR 4.8
EA-7R $280.00 P-8 width 0.187" $49.50 SGIH 32-4.8C-E7 $140.00 width .187

Aloris GT Cut-Off Insert
Cutting List Price List Price
Catalog Cutting Lead Grade A2 or A6 Grade 767
Number Edge Width Angle
Geometry Each Each
GTN 2* P .087 0 $7.00 $7.95
TOOL
GT L/R 2* P .087 8 $7.47 $8.41
WIDTH GTN 2.4* P .093 0 $9.33 $10.60
GTR-3 GT L/R 2.4* P .093 8 $9.33 $11.20
GTN 3* P .120 0 $6.99 $7.95
GROOVING GT L/R 3* P .120 8 $7.52 $8.41
HAND OF TOOL GTN 4* P .160 0 $8.13 $9.90
R=RIGHT, N=NEUTRAL, L=LEFT
GT L/R 4* P .160 8 $8.58 $10.38
GTN 4.8* P .187 0 $11.73 $14.12
Pick the grade to fit your application. GT L/R 4.8* P .187 8 $12.38 $14.73
GTN 5* P .200 0 $8.78 $10.61
767 – A strong steel cutting grade ideal for cut-off and grooving GT L/R 5* P .200 8 $9.05 $11.03
applications, coated with Titanium Nitride (gold) for additional GTN 6* P .250 0 $13.69 $16.08
wear properties.
GT L/R 6* P .250 8 $14.30 $16.70
A2 – Our best fine-grain uncoated grade for cast iron, nonferrous GTN 8* P .315 0 $20.38 $22.77
metals and high-temp alloys.
GT L/R 8* P .315 4 $20.98 $23.38
A6 – A strong steel cutting grade, uncoated, for low to medium GTN 9* P .375 0 $27.16 $32.74
speed operations.
GT L/R 9* P .375 4 $27.83 $30.16
Inserts are priced individually, however, they must be purchased in packages of 10.
GT Cut-Off Inserts Available Positive, and High Positive
Available in Neutral, Left Hand, Right Hand, Coated & Uncoated Insert Information & Pricing on Pages 49 to 54.
