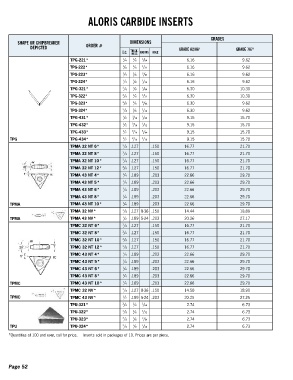

ALORIS CARBIDE INSERTS

GRADES
SHAPE OR CHIPBREAKER ORDER # DIMENSIONS
DEPICTED GRADE A2/A6 † GRADE 767 †
I.C. THICK- RADIUS HOLE
NESS
TPG-221* 1 /4 1 /8 1 /64 6.16 9.62
TPG-222* 1 /4 1 /8 1 /32 6.16 9.62
TPG-223* 1 /4 1 /8 3 /64 6.16 9.62
TPG-224* 1 /4 1 /8 1 /16 6.16 9.62
TPG-321* 3 /8 1 /8 1 /64 6.30 10.30
TPG-322* 3 /8 1 /8 1 /32 6.30 10.30
TPG-323* 3 /8 1 /8 3 /64 6.30 9.62
TPG-324* 3 /8 1 /8 1 /16 6.30 9.62
TPG-431* 1 /2 3 /16 1 /32 9.15 15.70
TPG-432* 1 /2 3 /16 1 /32 9.15 15.70
TPG-433* 1 /2 3 /16 3 /64 9.15 15.70
TPG TPG-434* 1 /2 3 /16 1 /16 9.15 15.70
TPMA 32 NT 6* 3 /8 .127 .150 16.77 21.70
TPMA 32 NT 8* 3 /8 .127 .150 16.77 21.70
TPMA 32 NT 10* 3 /8 .127 .150 16.77 21.70
TPMA 32 NT 12* 3 /8 .127 .150 16.77 21.70
TPMA 43 NT 4* 1 /4 .189 .203 22.66 29.70
TPMA 43 NT 5* 1 /4 .189 .203 22.66 29.70
TPMA 43 NT 6* 1 /4 .189 .203 22.66 29.70
TPMA 43 NT 8* 1 /4 .189 .203 22.66 29.70
TPMA TPMA 43 NT 10* 1 /4 .189 .203 22.66 29.70
TPMA 32 NV* 3 /8 .127 8-36 .150 14.44 18.88
TPMA TPMA 43 NV* 1 /2 .189 5-24 .203 20.26 27.17
TPMC 32 NT 6* 3 /8 .127 .150 16.77 21.70
TPMC 32 NT 8* 3 /8 .127 .150 16.77 21.70
TPMC 32 NT 10* 3 /8 .127 .150 16.77 21.70
TPMC 32 NT 12* 3 /8 .127 .150 16.77 21.70
TPMC 43 NT 4* 1 /4 .189 .203 22.66 29.70
TPMC 43 NT 5* 1 /4 .189 .203 22.66 29.70
TPMC 43 NT 6* 1 /4 .189 .203 22.66 29.70
TPMC 43 NT 8* 1 /4 .189 .203 22.66 29.70
TPMC TPMC 43 NT 10* 1 /4 .189 .203 22.66 29.70
TPMC 32 NV* 3 /8 .127 8-36 .150 14.50 18.90
TPMC TPMC 43 NV* 1 /2 .189 5-24 .203 20.25 27.25
TPU-321* 3 /8 1 /8 1 /64 2.74 6.73
TPU-322* 3 /8 1 /8 1 /32 2.74 6.73
TPU-323* 3 /8 1 /8 3 /64 2.74 6.73
TPU TPU-324* 3 /8 1 /8 1 /16 2.74 6.73
Quantities of 100 and over, call for price. Inserts sold in packages of 10. Prices are per piece.
