Solid carbide tools
F6

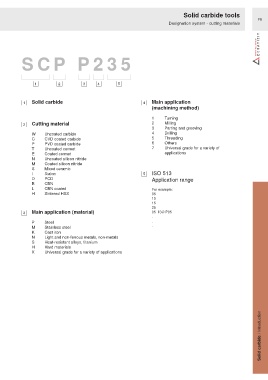

Designation system - cutting materials

S CP P235

1 2 3 4 5

1 Solid carbide 4 Main application
(machining method)
1 Turning
2 Cutting material 2 Milling
3 Parting and grooving
W Uncoated carbide 4 Drilling
C CVD coated carbide 5 Threading
P PVD coated carbide 6 Others
T Uncoated cermet 7 Universal grade for a variety of
E Coated cermet applications
N Uncoated silicon nitride
M Coated silicon nitride
S Mixed ceramic
I Sialon 5 ISO 513
D PCD Application range
B CBN
L CBN coated For example:
H Sintered HSS 05
10
15
25
3 Main application (material) 35 ISO P35
.
P Steel .
.
M Stainless steel
K Cast iron
N Light and non-ferrous metals, non-metals
S Heat-resistant alloys, titanium
H Hard materials
X Universal grade for a variety of applications

Solid carbide / Introduction
