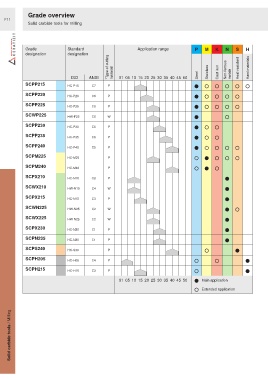

Grade overview
F11
Solid carbide tools for milling

Grade Standard Application range P M K N S H
designation designation
*Type of cutting Stainless Non-ferrous Heat-resistant Hard materials

ISO ANSI material 01 05 10 15 20 25 30 35 40 45 50 Steel Cast iron metals
SCPP215 HC-P15 C7 P ● ○ ○ ○ ○ ○

SCPP220 HC-P20 C6 P ● ○ ○ ○ ○

SCPP225 HC-P25 C6 P ● ○ ○ ○ ○

SCWP225
HW-P25 C6 W ● ○
SCPP230 HC-P30 C6 P ● ○ ○

SCPP235 HC-P35 C6 P ● ○ ○

SCPP240 HC-P40 C5 P ● ○ ○ ○ ○

SCPM225
HC-M25 P ○ ● ○ ○ ○
SCPM240 HC-M40 P ○ ● ○
SCPX210 HC-N10 C3 P ●

SCWX210 HW-N10 C4 W ●

SCPX215
HC-N15 C3 P ●
SCWN225 HW-N25 C2 W ● ○

SCWX225 HW-N25 C2 W ●

SCPX230 HC-N30 C1 P ●

SCPN235
HC-N30 C1 P ●
SCPS240 HC-S30 P ○ ●

SCPH205 HC-H05 C4 P ○ ○ ●

SCPH215 HC-H15 C3 P ○ ●

01 05 10 15 20 25 30 35 40 45 50 ● Main application
○ Extended application

Solid carbide tools / Milling
