Page 1012 - Ceratizit Catalog
P. 1012

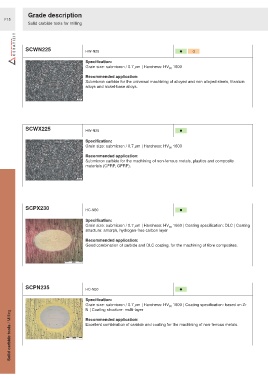

Grade description
F15
Solid carbide tools for milling
SCWN225 HW-N25 ● ○
Specification:
Grain size: submicron / 0.7 µm | Hardness: HV 1600
30
Recommended application:
Submicron carbide for the universal machining of alloyed and non alloyed steels, titanium
alloys and nickel-base alloys.
SCWX225
HW-N25 ●
Specification:
Grain size: submicron / 0.7 µm | Hardness: HV 1600
30
Recommended application:
Submicron carbide for the machining of non-ferrous metals, plastics and composite
materials (CFRP, GFRP).
SCPX230 HC-N30 ●
Specification:
Grain size: submicron / 0.7 µm | Hardness: HV 1660 | Coating specification: DLC | Coating
30
structure: amorph, hydrogen-free carbon layer
Recommended application:
Good combination of carbide and DLC coating, for the machining of fibre composites.
SCPN235 HC-N30 ●
Specification:
Grain size: submicron / 0.7 µm | Hardness: HV 1600 | Coating specification: based on Zr
30
N | Coating structure: multi-layer
Solid carbide tools / Milling Excellent combination of carbide and coating for the machining of non-ferrous metals.
Recommended application:
