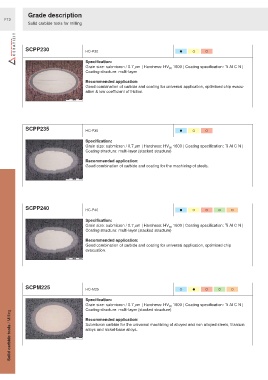

Page 1010 - Ceratizit Catalog
P. 1010
Grade description
F13
Solid carbide tools for milling
SCPP230 HC-P30 ● ○ ○
Specification:
Grain size: submicron / 0.7 µm | Hardness: HV 1600 | Coating specification: Ti Al C N |
30
Coating structure: multi-layer
Recommended application:
Good combination of carbide and coating for universal application, optimised chip evacu-
ation & low coefficient of friction.
SCPP235
HC-P35 ● ○ ○
Specification:
Grain size: submicron / 0.7 µm | Hardness: HV 1600 | Coating specification: Ti Al C N |
30
Coating structure: multi-layer (stacked structure)
Recommended application:
Good combination of carbide and coating for the machining of steels.
SCPP240 HC-P40 ● ○ ○ ○ ○
Specification:
Grain size: submicron / 0.7 µm | Hardness: HV 1600 | Coating specification: Ti Al C N |
30
Coating structure: multi-layer (stacked structure)
Recommended application:
Good combination of carbide and coating for universal application, optimised chip
evacuation.
SCPM225 HC-M25 ○ ● ○ ○ ○
Specification:
Grain size: submicron / 0.7 µm | Hardness: HV 1600 | Coating specification: Ti Al C N |
30
Coating structure: multi-layer (stacked structure)
Solid carbide tools / Milling Submicron carbide for the universal machining of alloyed and non alloyed steels, titanium
Recommended application:
alloys and nickel-base alloys.
