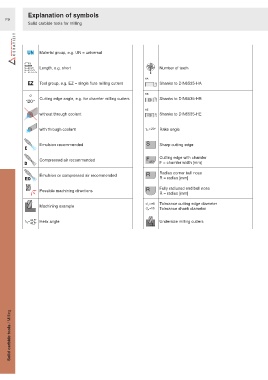

Explanation of symbols
F9
Solid carbide tools for milling

Material group, e.g. UN = universal

Length, e.g. short Number of teeth

HA
Tool group, e.g. EZ = single flute milling cutters Shanks to DIN6535-HA

σ HB
Cutting edge angle, e.g. for chamfer milling cutters Shanks to DIN6535-HB
120°

without through coolant Shanks to DIN6535-HE

with through coolant Rake angle

Emulsion recommended Sharp cutting edge

Cutting edge with chamfer
Compressed air recommended
F = chamfer width [mm]

Radius corner bull nose
Emulsion or compressed air recommended
R = radius [mm]
R Fully radiused end ball nose
Possible machining directions
R = radius [mm]
Tolerance cutting edge diameter
Machining example
Tolerance shank diameter

Helix angle Undersize milling cutters

Solid carbide tools / Milling
