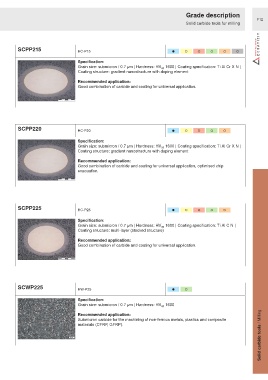

Grade description
F12
Solid carbide tools for milling
SCPP215 HC-P15 ● ○ ○ ○ ○ ○
Specification:
Grain size: submicron / 0.7 µm | Hardness: HV 1600 | Coating specification: Ti Al Cr X N |
30
Coating structure: gradient nanostructure with doping element
Recommended application:
Good combination of carbide and coating for universal application.
SCPP220
HC-P20 ● ○ ○ ○ ○
Specification:
Grain size: submicron / 0.7 µm | Hardness: HV 1600 | Coating specification: Ti Al Cr X N |
30
Coating structure: gradient nanostructure with doping element
Recommended application:
Good combination of carbide and coating for universal application, optimised chip
evacuation.
SCPP225 HC-P25 ● ○ ○ ○ ○
Specification:
Grain size: submicron / 0.7 µm | Hardness: HV 1600 | Coating specification: Ti Al C N |
30
Coating structure: multi-layer (stacked structure)
Recommended application:
Good combination of carbide and coating for universal application.
SCWP225 HW-P25 ● ○
Specification:
Grain size: submicron / 0.7 µm | Hardness: HV 1600
30
Solid carbide tools / Milling
Recommended application:
Submicron carbide for the machining of non-ferrous metals, plastics and composite
materials (CFRP, GFRP).
