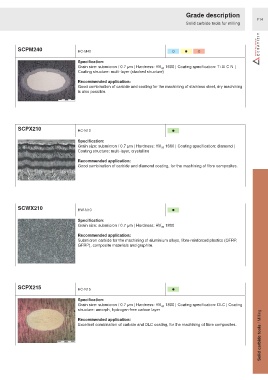

Page 1011 - Ceratizit Catalog

Grade description
F14
Solid carbide tools for milling

SCPM240 HC-M40 ○ ● ○

Specification:
Grain size: submicron / 0.7 µm | Hardness: HV 1600 | Coating specification: Ti Al C N |
30
Coating structure: multi-layer (stacked structure)

Recommended application:
Good combination of carbide and coating for the machining of stainless steel, dry machining
is also possible.

SCPX210
HC-N10 ●

Specification:
Grain size: submicron / 0.7 µm | Hardness: HV 1660 | Coating specification: diamond |
30
Coating structure: multi-layer, crystalline

Recommended application:
Good combination of carbide and diamond coating, for the machining of fibre composites.

SCWX210 HW-N10 ●

Specification:
Grain size: submicron / 0.7 µm | Hardness: HV 1800
30

Recommended application:
Submicron carbide for the machining of aluminium alloys, fibre-reinforced plastics (CFRP,
GFRP), composite materials and graphite.

SCPX215 HC-N15 ●

Specification:
Grain size: submicron / 0.7 µm | Hardness: HV 1800 | Coating specification: DLC | Coating
30
structure: amorph, hydrogen-free carbon layer
Solid carbide tools / Milling

Recommended application:
Excellent combination of carbide and DLC coating, for the machining of fibre composites.
