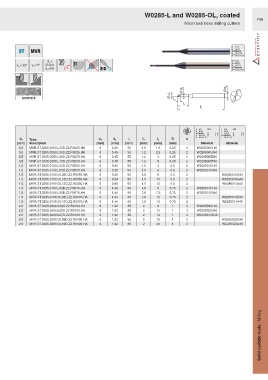

Page 1095 - Ceratizit Catalog

W0285-L and W0285-OL, coated
F98
Micro ball nose milling cutters

R

Ø d 3 Ø d A
Ø d 1
SCPP215
l 2
l 3
l 1

HA HA
d 1 Type, d A d 3 l 1 l 2 l 3 R z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] Material Material
0.5 MVR.ST.0285.0050.L03D.Z2.R0025.HA 6 0.45 55 0.5 1.5 0.25 2 W0285005140
0.5 MVR.ST.0285.0050.L05D.Z2.R0025.HA 6 0.45 55 1.2 2.5 0.25 2 W0285005340
0.5 MVR.ST.0285.0050.L08D.Z2.R0025.HA 6 0.45 55 1.2 4 0.25 2 W0285005540
0.5 MVR.ST.0285.0050.L10D.Z2.R0025.HA 6 0.45 55 1.2 5 0.25 2 W0285005740
1.0 MVR.ST.0285.0100.L03D.Z2.R0050.HA 6 0.95 55 1.5 3 0.5 2 W0285010140
1.0 MVR.ST.0285.0100.L05D.Z2.R0050.HA 6 0.95 55 1.5 5 0.5 2 W0285010340
1.0 MVR.ST.0285.0100.OL08D.Z2.R0050.HA 6 0.95 65 1.5 8 0.5 2 W0285010D40
1.0 MVR.ST.0285.0100.OL10D.Z2.R0050.HA 6 0.95 65 1.5 10 0.5 2 W0285010G40
1.0 MVR.ST.0285.0100.OL12D.Z2.R0050.HA 6 0.95 65 1.5 12 0.5 2 W0285010440
1.5 MVR.ST.0285.0150.L03D.Z2.R0075.HA 6 1.44 55 1.8 5 0.75 2 W0285015140
1.5 MVR.ST.0285.0150.L05D.Z2.R0075.HA 6 1.44 55 1.8 7.5 0.75 2 W0285015340
1.5 MVR.ST.0285.0150.OL08D.Z2.R0075.HA 6 1.44 65 1.8 12 0.75 2 W0285015D40
1.5 MVR.ST.0285.0150.OL10D.Z2.R0075.HA 6 1.44 65 1.8 15 0.75 2 W0285015440
2.0 MVR.ST.0285.0200.L03D.Z2.R0100.HA 6 1.92 55 2 6 1 2 W0285020140
2.0 MVR.ST.0285.0200.L05D.Z2.R0100.HA 6 1.92 55 2 10 1 2 W0285020340
2.0 MVR.ST.0285.0200.L07D.Z2.R0100.HA 6 1.92 55 2 14 1 2 W0285020D40
2.0 MVR.ST.0285.0200.OL08D.Z2.R0100.HA 6 1.92 65 2 16 1 2 W0285020G40
2.0 MVR.ST.0285.0200.OL10D.Z2.R0100.HA 6 1.92 65 2 20 1 2 W0285020440

Solid carbide tools / Milling
