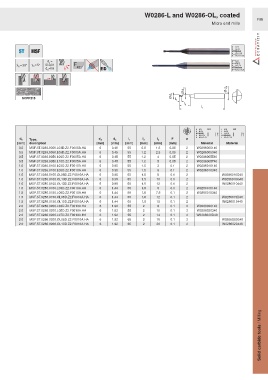

W0286-L and W0286-OL, coated
F96
Micro end mills

Ø d 3 Ø d A
Ø d 1
SCPP215
l 2
l 3
l 1

HA HA
d 1 Type, d A d 3 l 1 l 2 l 3 F z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] Material Material
0.5 MSF.ST.0286.0050.L03D.Z2.F0005A.HA 6 0.45 55 0.5 1.5 0.05 2 W0286005140
0.5 MSF.ST.0286.0050.L05D.Z2.F0005A.HA 6 0.45 55 1.2 2.5 0.05 2 W0286005340
0.5 MSF.ST.0286.0050.L08D.Z2.F0005A.HA 6 0.45 55 1.2 4 0.05 2 W0286005540
0.5 MSF.ST.0286.0050.L10D.Z2.F0005A.HA 6 0.45 55 1.2 5 0.05 2 W0286005740
1.0 MSF.ST.0286.0100.L03D.Z2.F0010A.HA 6 0.95 55 1.5 3 0.1 2 W0286010140
1.0 MSF.ST.0286.0100.L05D.Z2.F0010A.HA 6 0.95 55 1.5 5 0.1 2 W0286010340
1.0 MSF.ST.0286.0100.OL08D.Z2.F0010A.HA 6 0.95 65 1.5 8 0.1 2 W0286010D40
1.0 MSF.ST.0286.0100.OL10D.Z2.F0010A.HA 6 0.95 65 1.5 10 0.1 2 W0286010G40
1.0 MSF.ST.0286.0100.OL12D.Z2.F0010A.HA 6 0.95 65 1.5 12 0.1 2 W0286010440
1.5 MSF.ST.0286.0150.L03D.Z2.F0010A.HA 6 1.44 55 1.8 5 0.1 2 W0286015140
1.5 MSF.ST.0286.0150.L05D.Z2.F0010A.HA 6 1.44 55 1.8 7.5 0.1 2 W0286015340
1.5 MSF.ST.0286.0150.OL08D.Z2.F0010A.HA 6 1.44 65 1.8 12 0.1 2 W0286015D40
1.5 MSF.ST.0286.0150.OL10D.Z2.F0010A.HA 6 1.44 65 1.8 15 0.1 2 W0286015440
2.0 MSF.ST.0286.0200.L03D.Z2.F0010A.HA 6 1.92 55 2 6 0.1 2 W0286020140
2.0 MSF.ST.0286.0200.L05D.Z2.F0010A.HA 6 1.92 55 2 10 0.1 2 W0286020340
2.0 MSF.ST.0286.0200.L07D.Z2.F0010A.HA 6 1.92 55 2 14 0.1 2 W0286020D40
2.0 MSF.ST.0286.0200.OL08D.Z2.F0010A.HA 6 1.92 65 2 16 0.1 2 W0286020G40
2.0 MSF.ST.0286.0200.OL10D.Z2.F0010A.HA 6 1.92 65 2 20 0.1 2 W0286020440
