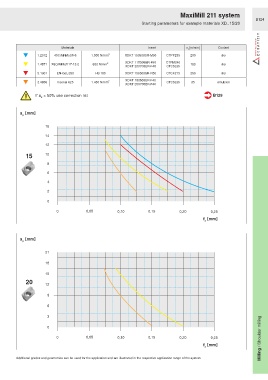

MaxiMill 211 system
B124
Starting parameters for example materials XD..15/20
Materials Insert v c [m/min] Coolant
1.2312 40CrMnMoS8-6 1.000 N/mm 2 XDKT 150508SR-M50 CTPP235 200 dry
XDKT 11T308ER-F50 CTPM240
1.4571 X6CrNiMoTi17-12-2 600 N/mm 2 180 dry
XDKT 200708ER-F40 CTC5235
5.1301 EN-GJL-250 HB 180 XDKT 150508SR-R50 CTCK215 250 dry
XDKT 150508ER-F40
2
2.4856 Inconel 625 1.450 N/mm CTC5235 35 emulsion
XDKT 200708ER-F40
If a < 50% use correction list B129
e
a ［mm］
p
16
14
12
15 10
8
6
4
2
0
0 0,05 0,10 0,15 0,20 0,25
f ［mm］
z
a ［mm］
p
21
18
15
20 12
9
6
3
Milling / Shoulder milling
0
0 0,05 0,10 0,15 0,20 0,25
f ［mm］
z
Additional grades and geometries can be used for the application and are illustrated in the respective application range of the system.
