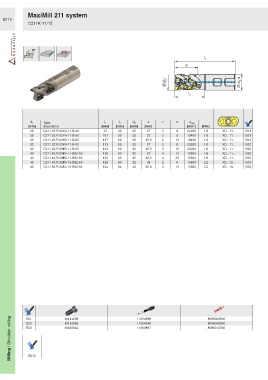

P. 446
MaxiMill 211 system
B119
C211K-11/15
l
1
a
Ø d 1 Ø d A h6
l 2
d 1 Type, l 1 l 2 d A a z n n max
-1
[mm] description [mm] [mm] [mm] [mm] [min ] [Nm]
25 C211.25.R.02K3-11-B-40 97 40 25 27 2 6 22200 1.6 XD.. 11.. E01
25 C211.25.R.02K4-11-B-50 107 50 25 37 2 8 19400 1.6 XD.. 11.. E01
25 C211.25.R.02K5-11-B-60 117 60 25 45.5 2 10 19400 1.6 XD.. 11.. E01
32 C211.32.R.02K4-11-B-50 111 50 32 37 2 8 20200 1.6 XD.. 11.. E02
32 C211.32.R.03K5-11-B-60 121 60 32 45.5 3 15 20200 1.6 XD.. 11.. E02
40 C211.40.R.03K4-11-B32-50 110 50 32 37 3 12 18500 1.6 XD.. 11.. E02
40 C211.40.R.04K5-11-B32-60 120 60 32 45.5 4 20 18500 1.6 XD.. 11.. E02
40 C211.40.R.02K3-15-B32-60 120 60 32 38 2 6 14800 3.2 XD.. 15.. E03
50 C211.50.R.03K4-15-B40-64 134 64 40 50.5 3 12 13600 3.2 XD.. 15.. E03
Milling / Shoulder milling E01 11114238 11254598 8095003900
11114242
E02
11254598
8095003900
11450042
E03
8095012000
11450867
B276
