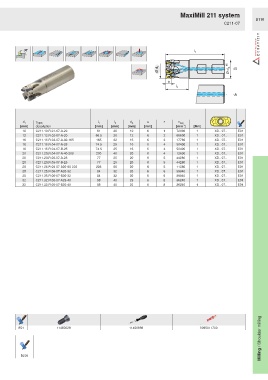

MaxiMill 211 system
B116
C211-07

l 1

Ø d 1 Ø d A h6 -B

a
l 2

-A

d 1 Type, l 1 l 2 d A a z n max
-1
[mm] description [mm] [mm] [mm] [mm] [min ] [Nm]

10 C211.10.R.01-07-A-20 61 20 10 6 1 72000 1 XD.. 07.. E01

12 C211.12.R.02-07-A-20 66.5 20 12 6 2 66600 1 XD.. 07.. E01

16 C211.16.R.03-07-A-32-165 165 32 16 6 3 17760 1 XD.. 07.. E01
16 C211.16.R.04-07-A-25 74.5 25 16 6 4 50400 1 XD.. 07.. E01

16 C211.16.R.04-07-B-25 74.5 25 16 6 4 50400 1 XD.. 07.. E01
20 C211.20.R.04-07-A-40-200 200 40 20 6 4 12600 1 XD.. 07.. E01

20 C211.20.R.05-07-A-25 77 25 20 6 5 44280 1 XD.. 07.. E01

20 C211.20.R.05-07-B-25 77 25 20 6 5 44280 1 XD.. 07.. E01

25 C211.25.R.05-07-A20-50-225 225 50 20 6 5 11280 1 XD.. 07.. E01

25 C211.25.R.06-07-A20-32 84 32 20 6 6 39840 1 XD.. 07.. E01

25 C211.25.R.06-07-B20-32 84 32 20 6 6 39840 1 XD.. 07.. E01

32 C211.32.R.08-07-A25-40 98 40 25 6 8 36240 1 XD.. 07.. E01

32 C211.32.R.08-07-B25-40 98 40 25 6 8 36240 1 XD.. 07.. E01

Milling / Shoulder milling
E01 11450028 11450898 8095011700
