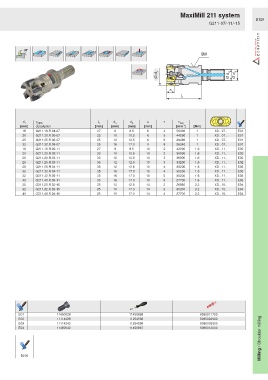

Page 447 - Ceratizit Catalog
P. 447
MaxiMill 211 system
B120
G211-07/-11/-15
SW
Ø d 1 Ø d G Ø d A
a
l
2
d 1 Type, l 2 d G d A a z n max
-1
[mm] description [mm] [mm] [mm] [mm] [min ] [Nm]
16 G211.16.R.04-07 27 8 8.5 6 4 50400 1 XD.. 07.. E01
20 G211.20.R.05-07 33 10 10.5 6 5 44280 1 XD.. 07.. E01
25 G211.25.R.06-07 35 12 12.5 6 6 39480 1 XD.. 07.. E01
32 G211.32.R.08-07 35 16 17.0 6 8 36240 1 XD.. 07.. E01
16 G211.16.R.02-11 27 8 8.5 10 2 42000 1.6 XD.. 11.. E02
20 G211.20.R.02-11 33 10 10.5 10 2 36900 1.6 XD.. 11.. E02
20 G211.20.R.03-11 33 10 10.5 10 3 36900 1.6 XD.. 11.. E02
25 G211.25.R.03-11 35 12 12.5 10 3 33200 1.6 XD.. 11.. E02
25 G211.25.R.04-11 35 12 12.5 10 4 33200 1.6 XD.. 11.. E02
32 G211.32.R.04-11 35 16 17.0 10 4 30200 1.6 XD.. 11.. E02
32 G211.32.R.05-11 35 16 17.0 10 5 30200 1.6 XD.. 11.. E02
40 G211.40.R.06-11 35 16 17.0 10 6 27700 1.6 XD.. 11.. E03
25 G211.25.R.02-15 35 12 12.5 14 2 26560 3.2 XD.. 15.. E04
32 G211.32.R.03-15 35 16 17.0 14 3 30200 3.2 XD.. 15.. E04
40 G211.40.R.04-15 35 16 17.0 14 4 27700 3.2 XD.. 15.. E04
E01 11450028 11450898 8095011700
Milling / Shoulder milling
E02 11114238 11254598 8095003900
E03 11114242 11254598 8095003900
E04 11450042 11450867 8095012000
B276
