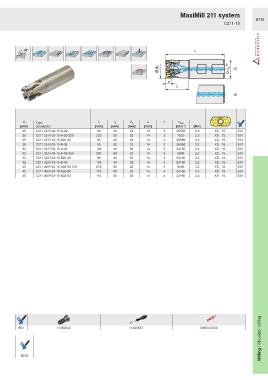

Page 445 - Ceratizit Catalog

MaxiMill 211 system
B118
C211-15

l 1

Ø d 1 Ø d A h6 -B

a
l 2

-A

d 1 Type, l 1 l 2 d A a z n max
-1
[mm] description [mm] [mm] [mm] [mm] [min ] [Nm]

25 C211.25.R.02-15-A-32 90 32 25 14 2 26560 3.2 XD.. 15.. E01

25 C211.25.R.02-15-A-50-225 225 50 25 14 2 7520 3.2 XD.. 15.. E01

25 C211.25.R.02-15-B20-32 83 32 20 14 2 26560 3.2 XD.. 15.. E01
25 C211.25.R.02-15-B-32 90 32 25 14 2 26560 3.2 XD.. 15.. E01

32 C211.32.R.03-15-A-40 103 40 32 14 3 24160 3.2 XD.. 15.. E01

32 C211.32.R.03-15-A-63-250 250 63 32 14 3 6800 3.2 XD.. 15.. E01

32 C211.32.R.03-15-B25-40 96 40 25 14 3 24160 3.2 XD.. 15.. E01

32 C211.32.R.03-15-B-40 103 40 32 14 3 24160 3.2 XD.. 15.. E01

40 C211.40.R.03-15-A32-50-275 275 50 32 14 3 6120 3.2 XD.. 15.. E01

40 C211.40.R.04-15-A32-50 110 50 32 14 4 22160 3.2 XD.. 15.. E01
40 C211.40.R.04-15-B32-50 110 50 32 14 4 22160 3.2 XD.. 15.. E01

Milling / Shoulder milling
E01 11450042 11450867 8095012000

B276
