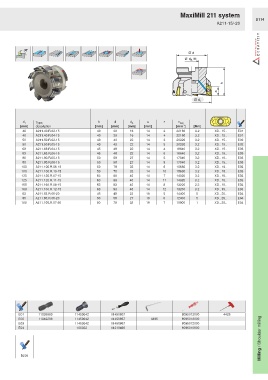

Page 441 - Ceratizit Catalog

MaxiMill 211 system
B114
A211-15/-20

Ø d
Ø d A H6

h
a

Ø d 1

d 1 Type, h d d A a z n max
-1
[mm] description [mm] [mm] [mm] [mm] [min ] [Nm]

40 A211.40.R.03-15 40 38 16 14 3 22160 3.2 XD.. 15.. E01

40 A211.40.R.04-15 40 38 16 14 4 22160 3.2 XD.. 15.. E01

50 A211.50.R.03-15 40 43 22 14 3 20320 3.2 XD.. 15.. E02

50 A211.50.R.05-15 40 43 22 14 5 20320 3.2 XD.. 15.. E02

63 A211.63.R.04-15 45 48 22 14 4 18640 3.2 XD.. 15.. E03
63 A211.63.R.06-15 45 48 22 14 6 18640 3.2 XD.. 15.. E03

80 A211.80.R.05-15 50 58 27 14 5 17040 3.2 XD.. 15.. E03

80 A211.80.R.08-15 50 58 27 14 8 17040 3.2 XD.. 15.. E03

100 A211.100.R.06-15 50 78 32 14 6 15680 3.2 XD.. 15.. E03

100 A211.100.R.10-15 50 78 32 14 10 15680 3.2 XD.. 15.. E03

125 A211.125.R.07-15 63 88 40 14 7 14320 3.2 XD.. 15.. E03

125 A211.125.R.11-15 63 88 40 14 11 14320 3.2 XD.. 15.. E03

160 A211.160.R.08-15 63 93 40 14 8 13200 3.2 XD.. 15.. E03

160 A211.160.R.12-15 63 93 40 14 12 13200 3.2 XD.. 15.. E03

63 A211.63.R.05-20 45 48 22 19 5 14400 5 XD.. 20.. E04

80 A211.80.R.06-20 50 58 27 19 6 12400 5 XD.. 20.. E04

100 A211.100.R.07-20 50 78 32 19 7 10900 1 XD.. 20.. E04

E01 11036880 11450042 11450867 8095012000 4425
Milling / Shoulder milling
E02 11040298 11450042 11450867 4496 8095012000
E03 11450042 11450867 8095012000
E04 106022 11210490 8095010600
