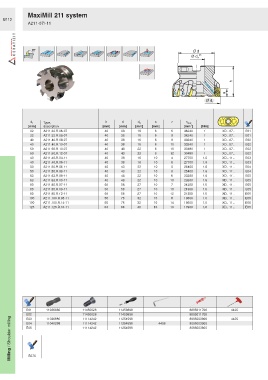

Page 440 - Ceratizit Catalog

MaxiMill 211 system
B113
A211-07/-11

Ø d
H6
Ø d A

h

a

Ø d 1

d 1 Type, h d d A a z n max
-1
[mm] description [mm] [mm] [mm] [mm] [min ] [Nm]

32 A211.32.R.06-07 40 38 16 6 6 36240 1 XD.. 07.. E01

32 A211.32.R.08-07 40 38 16 6 8 36240 1 XD.. 07.. E01

40 A211.40.R.08-07 40 38 16 6 8 33240 1 XD.. 07.. E02

40 A211.40.R.10-07 40 38 16 6 10 33240 1 XD.. 07.. E02

50 A211.50.R.10-07 40 43 22 6 10 30480 1 XD.. 07.. E02
50 A211.50.R.12-07 40 43 22 6 12 30480 1 XD.. 07.. E02

40 A211.40.R.04-11 40 38 16 10 4 27700 1.6 XD.. 11.. E03

40 A211.40.R.06-11 40 38 16 10 6 27700 1.6 XD.. 11.. E03

50 A211.50.R.05-11 40 43 22 10 5 25400 1.6 XD.. 11.. E04

50 A211.50.R.08-11 40 43 22 10 8 25400 1.6 XD.. 11.. E04

63 A211.63.R.06-11 40 48 22 10 6 23300 1.6 XD.. 11.. E05

63 A211.63.R.10-11 40 48 22 10 10 23300 1.6 XD.. 11.. E05

80 A211.80.R.07-11 50 58 27 10 7 21300 1.6 XD.. 11.. E05

80 A211.80.R.10-11 50 58 27 10 10 21300 1.6 XD.. 11.. E05

80 A211.80.R.12-11 50 58 27 10 12 21300 1.6 XD.. 11.. E05

100 A211.100.R.08-11 50 78 32 10 8 19600 1.6 XD.. 11.. E05
100 A211.100.R.14-11 50 78 32 10 14 19600 1.6 XD.. 11.. E05

125 A211.125.R.10-11 63 88 40 10 10 17900 1.6 XD.. 11.. E05

E01 11036880 11450028 11450898 8095011700 4425
E02 11036880 11450028 11450898 4496 8095011700 4425
Milling / Shoulder milling E05 11114242 11254598 8095003900
11114242
11254598
E03
8095003900
8095003900
11254598
11114242
E04
11040298
