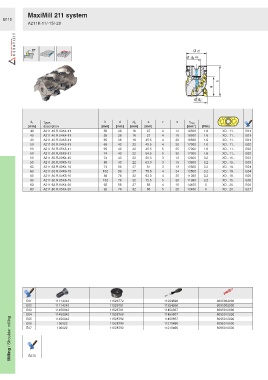

Page 442 - Ceratizit Catalog

MaxiMill 211 system
B115
A211K-11/-15/-20

Ø d
Ø d A H6

h
a

Ø d 1

d 1 Type, h d d A a z n n max
-1
[mm] description [mm] [mm] [mm] [mm] [min ] [Nm]

40 A211.40.R.03K4-11 56 38 16 37 3 12 18500 1.6 XD.. 11.. E01

40 A211.40.R.04K4-11 55 38 16 37 4 16 18500 1.6 XD.. 11.. E01

40 A211.40.R.04K5-11 65 38 16 45.5 4 20 18500 1.6 XD.. 11.. E01

50 A211.50.R.04K5-11 65 43 22 45.5 4 20 17000 1.6 XD.. 11.. E02

50 A211.50.R.05K5-11 65 43 22 45.5 5 25 17000 1.6 XD.. 11.. E02

50 A211.50.R.05K6-11 74 43 22 54.5 5 30 17000 1.6 XD.. 11.. E02

50 A211.50.R.03K4-15 74 43 22 50.5 3 12 13600 3.2 XD.. 15.. E03
50 A211.50.R.03K5-15 88 43 22 63.0 3 15 13600 3.2 XD.. 15.. E03

63 A211.63.R.03K4-15 74 58 27 51 3 12 12500 3.2 XD.. 15.. E04

63 A211.63.R.04K6-15 102 58 27 75.5 4 24 12500 3.2 XD.. 15.. E04

80 A211.80.R.04K5-15 88 78 32 63.0 4 20 11360 3.2 XD.. 15.. E05

80 A211.80.R.05K6-15 102 78 32 75.5 5 30 11360 3.2 XD.. 15.. E05

63 A211.63.R.04K4-20 92 58 27 68 4 16 14400 5 XD.. 20.. E06

80 A211.80.R.05K4-20 92 76 32 68 5 20 12400 5 XD.. 20.. E07

E01 11114242 11528772 11254598 8095003900
E02 11114242 11528781 11254598 8095003900
E03 11450042 11528781 11450867 8095012000
E04 11450042 11528790 11450867 8095012000
Milling / Shoulder milling E07 106022 11528792 11210490 8095010600
11528792
11450042
E05
11450867
8095012000
E06
8095010600
11528790
11210490
106022
