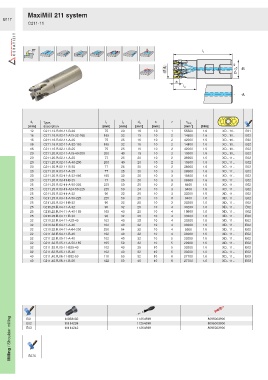

Page 444 - Ceratizit Catalog

MaxiMill 211 system
B117
C211-11

l 1

Ø d 1 Ø d A h6 -B

a
l 2

-A

d 1 Type, l 1 l 2 d A a z n max
-1
[mm] description [mm] [mm] [mm] [mm] [min ] [Nm]

12 C211.12.R.01-11-B-20 75 20 16 10 1 55500 1.6 XD.. 11.. E01

16 C211.16.R.02-11-A15-32-165 165 32 15 10 2 14800 1.6 XD.. 11.. E02

16 C211.16.R.02-11-A-25 75 25 16 10 2 42000 1.6 XD.. 11.. E02
16 C211.16.R.02-11-A-32-165 165 32 16 10 2 14800 1.6 XD.. 11.. E02

16 C211.16.R.02-11-B-25 75 25 16 10 2 42000 1.6 XD.. 11.. E02

20 C211.20.R.02-11-A19-40-200 200 40 19 10 2 10500 1.6 XD.. 11.. E02

20 C211.20.R.02-11-A-25 77 25 20 10 2 36900 1.6 XD.. 11.. E02

20 C211.20.R.02-11-A-40-200 200 40 20 10 2 10500 1.6 XD.. 11.. E02
20 C211.20.R.02-11-B-25 77 25 20 10 2 36900 1.6 XD.. 11.. E02

20 C211.20.R.03-11-A-25 77 25 20 10 3 36900 1.6 XD.. 11.. E02

20 C211.20.R.03-11-A-32-165 165 32 20 10 3 15800 1.6 XD.. 11.. E02

20 C211.20.R.03-11-B-25 77 25 20 10 3 36900 1.6 XD.. 11.. E02

25 C211.25.R.02-11-A-50-225 225 50 25 10 2 9400 1.6 XD.. 11.. E02

25 C211.25.R.03-11-A24-50-225 225 50 24 10 3 9400 1.6 XD.. 11.. E02

25 C211.25.R.03-11-A-32 90 32 25 10 3 33200 1.6 XD.. 11.. E02

25 C211.25.R.03-11-A-50-225 225 50 25 10 3 9400 1.6 XD.. 11.. E02

25 C211.25.R.03-11-B-32 90 32 25 10 3 33200 1.6 XD.. 11.. E02

25 C211.25.R.04-11-A-32 90 32 25 10 4 33200 1.6 XD.. 11.. E02

25 C211.25.R.04-11-A-40-165 165 40 25 10 4 19900 1.6 XD.. 11.. E02

25 C211.25.R.04-11-B-32 90 32 25 10 4 33200 1.6 XD.. 11.. E02

32 C211.32.R.04-11-A25-40 102 40 25 10 4 30200 1.6 XD.. 11.. E02

32 C211.32.R.04-11-A-40 102 40 32 10 4 30200 1.6 XD.. 11.. E02

32 C211.32.R.04-11-A-64-250 250 64 32 10 4 8500 1.6 XD.. 11.. E02

32 C211.32.R.04-11-B-40 102 40 32 10 4 30200 1.6 XD.. 11.. E02

32 C211.32.R.05-11-A-40 102 40 32 10 5 30200 1.6 XD.. 11.. E02

32 C211.32.R.05-11-A-50-165 165 50 32 10 5 20900 1.6 XD.. 11.. E02

32 C211.32.R.05-11-B25-40 102 40 25 10 5 30200 1.6 XD.. 11.. E02

32 C211.32.R.05-11-B-40 102 40 32 10 5 30200 1.6 XD.. 11.. E02

40 C211.40.R.06-11-B32-50 110 50 32 10 6 27700 1.6 XD.. 11.. E03
40 C211.40.R.06-11-B-50 122 50 40 10 6 27700 1.6 XD.. 11.. E03

Milling / Shoulder milling E01 11368132 11254598 8095003900
11114238
E02
11254598
8095003900
E03
11114242
8095003900
11254598
B276
