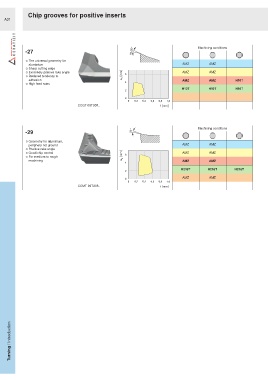

Chip grooves for positive inserts
A31

Machining conditions
-27

○ The universal geometry for
aluminium AMZ AMZ
○ Sharp cutting edge
○ Extremely positive rake angle ［mm］ 6 AMZ AMZ
○ Reduced tendency to
adhesion a p AMZ AMZ H1 0T
4
○ High feed rates
H10T H10T H1 0T
2

0
0 0,2 0,4 0,6 0,8 1,0
CCGT 09T308.. f ［mm］

-29 20° Machining conditions

○ Geometry for aluminium,
periphery not ground AMZ AMZ
○ Positive rake angle
○ Good chip control ［mm］ AMZ AMZ
○ For medium to rough 6
machining a p AMZ AMZ
4
H216T H216T H216T

2
AMZ AMZ
0
0 0,2 0,4 0,6 0,8 1,0
CCMT 09T308.. f ［mm］

Turning / Introduction
