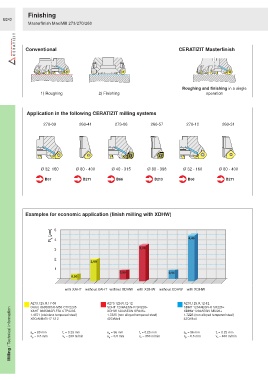

Page 570 - Ceratizit Catalog

Finishing
B243
Masterfinish MaxiMill 273/270/260

Conventional CERATIZIT Masterfinish

Roughing and finishing in a single
1) Roughing 2) Finishing operation

Application in the following CERATIZIT milling systems

270-09 260-41 273-06 260-57 270-12 260-31

Ø 32 160 Ø 80 - 400 Ø 40 - 315 Ø 80 - 398 Ø 32 - 160 Ø 80 - 400

B57 B211 B66 B213 B58 B211

Examples for economic application (finish milling with XDHW)

m] 5
[µ
R a 4 4,46
3,38
3
2
2,00
1
0,95 0,96
0,50

with XAHT without XAHT without XDHW with XDHW without XDHW with XDHW

A273.125.R.17-06 A270.125.R.12-12 A270.125.R.12-12
SDHT 1204AESN-R SR226+
SDHT 1204AESN-R SR226+
OAKU 060508SR-M50 CTP2235
Milling / Technical information X6CrNiMoTi 17 12 2 f z = 0.25 mm 42CrMo4 f z = 0.25 mm 42CrMo4 f z = 0.25 mm
XDHW 1204AESN SR226+
XDHW 1204AESN SR226+
XAHT 060508SR-F50 CTP2235
1.4571 (stainless tempered steel)
1.7225 (non alloyed tempered steel)
1.7225 (non alloyed tempered steel)
a e = 80 mm
a e = 96 mm
a e = 96 mm
v c = 200 m/min
a p = 0.5 mm
v c = 400 m/min
a p = 0.5 mm
a p = 0.5 mm
v c = 350 m/min
