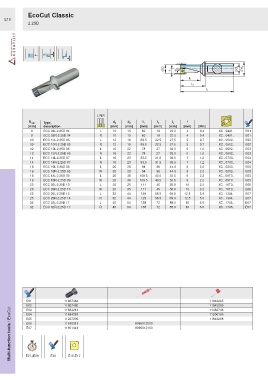

Page 946 - Ceratizit Catalog

EcoCut Classic
E19
2.25D

L N R
D min Type, d A d 2 l 1 l 2 l 3 f
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] [Nm]

8 ECC 08L-2.25D 04 L 10 15 60 18 22.0 4 0.4 XC.. 0401.. E01
8 ECC 08R-2.25D 04 R 10 15 60 18 22.0 4 0.4 XC.. 0401.. E01

10 ECC 10L-2.25D 05 L 12 18 69.5 22.5 27.5 5 0.7 XC.. 0502.. E02

10 ECC 10R-2.25D 05 R 12 18 69.5 22.5 27.5 5 0.7 XC.. 0502.. E02
12 ECC 12L-2.25D 06 L 16 22 78 27 33.0 6 1.0 XC.. 0602.. E03

12 ECC 12R-2.25D 06 R 16 22 78 27 33.0 6 1.0 XC.. 0602.. E03
14 ECC 14L-2.25D 07 L 16 23 83.5 31.5 38.5 7 1.2 XC.. 0703.. E04

14 ECC 14R-2.25D 07 R 16 23 83.5 31.5 38.5 7 1.2 XC.. 0703.. E04

16 ECC 16L-2.25D 08 L 20 28 94 36 44.0 8 2.2 XC.. 0803.. E05
16 ECC 16R-2.25D 08 R 20 28 94 36 44.0 8 2.2 XC.. 0803.. E05

18 ECC 18L-2.25D 09 L 25 36 109.5 40.5 53.5 9 2.2 XC.. 09T3.. E05
18 ECC 18R-2.25D 09 R 25 36 109.5 40.5 53.5 9 2.2 XC.. 09T3.. E05

20 ECC 20L-2.25D 10 L 25 35 111 45 55.0 10 3.2 XC.. 10T3.. E06

20 ECC 20R-2.25D 10 R 25 35 111 45 55.0 10 3.2 XC.. 10T3.. E06

25 ECC 25L-2.25D 13 L 32 44 129 56.5 69.0 12.5 5.0 XC.. 1304.. E07

25 ECC 25R-2.25D 13 R 32 44 129 56.5 69.0 12.5 5.0 XC.. 1304.. E07
32 ECC 32L-2.25D 17 L 40 54 158 72 88.0 16 5.0 XC.. 1705.. E07

32 ECC 32R-2.25D 17 R 40 54 158 72 88.0 16 5.0 XC.. 1705.. E07

E01 11807484 11843205
E02 11807480 11843205
Multi-function tools / EcoCut E27+E29 E38 11610311 8095012000
11488748
11684214
E03
11684216
11206195
E04
11227305
E05
11843208
E06
8095012100
11801441
E07
E15-E17
