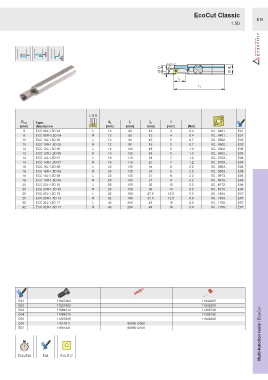

Page 945 - Ceratizit Catalog

EcoCut Classic
E18
1.5D

Ø D f 90° Ø d A

l 2

l 1

L N R
D min Type, d A l 1 l 2 f
[mm] description [mm] [mm] [mm] [mm] [Nm]
8 ECC 08L-1.5D 04 L 12 80 12 4 0.4 XC.. 0401.. E01

8 ECC 08R-1.5D 04 R 12 80 12 4 0.4 XC.. 0401.. E01

10 ECC 10L-1.5D 05 L 12 90 15 5 0.7 XC.. 0502.. E02

10 ECC 10R-1.5D 05 R 12 90 15 5 0.7 XC.. 0502.. E02

12 ECC 12L-1.5D 06 L 16 100 18 6 1.0 XC.. 0602.. E03

12 ECC 12R-1.5D 06 R 16 100 18 6 1.0 XC.. 0602.. E03

14 ECC 14L-1.5D 07 L 16 110 21 7 1.2 XC.. 0703.. E04
14 ECC 14R-1.5D 07 R 16 110 21 7 1.2 XC.. 0703.. E04

16 ECC 16L-1.5D 08 L 20 125 24 8 2.2 XC.. 0803.. E05

16 ECC 16R-1.5D 08 R 20 125 24 8 2.2 XC.. 0803.. E05

18 ECC 18L-1.5D 09 L 25 135 27 9 2.2 XC.. 09T3.. E05

18 ECC 18R-1.5D 09 R 25 135 27 9 2.2 XC.. 09T3.. E05

20 ECC 20L-1.5D 10 L 25 150 30 10 3.2 XC.. 10T3.. E06
20 ECC 20R-1.5D 10 R 25 150 30 10 3.2 XC.. 10T3.. E06

25 ECC 25L-1.5D 13 L 32 180 37.5 12.5 5.0 XC.. 1304.. E07

25 ECC 25R-1.5D 13 R 32 180 37.5 12.5 5.0 XC.. 1304.. E07

32 ECC 32L-1.5D 17 L 40 200 48 16 5.0 XC.. 1705.. E07
32 ECC 32R-1.5D 17 R 40 200 48 16 5.0 XC.. 1705.. E07

E01 11807484 11843205
E02 11807480 11843205
Multi-function tools / EcoCut
E03 11684214 11488748
E04 11684216 11206195
E05 11227305 11843208
E06 11610311 8095012000
E07 11801441 8095012100

E26+E29 E38 E15-E17
