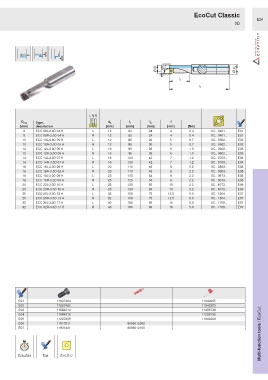

Page 947 - Ceratizit Catalog

EcoCut Classic
E20
3D

Ø D f 90° Ø d A

l 2

l 1

L N R
D min Type, d A l 1 l 2 f
[mm] description [mm] [mm] [mm] [mm] [Nm]
8 ECC 08L-3.0D 04 H L 12 80 24 4 0.4 XC.. 0401.. E01

8 ECC 08R-3.0D 04 H R 12 80 24 4 0.4 XC.. 0401.. E01

10 ECC 10L-3.0D 05 H L 12 85 30 5 0.7 XC.. 0502.. E02

10 ECC 10R-3.0D 05 H R 12 85 30 5 0.7 XC.. 0502.. E02

12 ECC 12L-3.0D 06 H L 16 95 36 6 1.0 XC.. 0602.. E03

12 ECC 12R-3.0D 06 H R 16 95 36 6 1.0 XC.. 0602.. E03

14 ECC 14L-3.0D 07 H L 16 100 42 7 1.2 XC.. 0703.. E04
14 ECC 14R-3.0D 07 H R 16 100 42 7 1.2 XC.. 0703.. E04

16 ECC 16L-3.0D 08 H L 20 110 48 8 2.2 XC.. 0803.. E05

16 ECC 16R-3.0D 08 H R 20 110 48 8 2.2 XC.. 0803.. E05

18 ECC 18L-3.0D 09 H L 25 125 54 9 2.2 XC.. 09T3.. E05

18 ECC 18R-3.0D 09 H R 25 125 54 9 2.2 XC.. 09T3.. E05

20 ECC 20L-3.0D 10 H L 25 130 60 10 3.2 XC.. 10T3.. E06
20 ECC 20R-3.0D 10 H R 25 130 60 10 3.2 XC.. 10T3.. E06

25 ECC 25L-3.0D 13 H L 32 150 75 12.5 5.0 XC.. 1304.. E07

25 ECC 25R-3.0D 13 H R 32 150 75 12.5 5.0 XC.. 1304.. E07

32 ECC 32L-3.0D 17 H L 40 185 96 16 5.0 XC.. 1705.. E07
32 ECC 32R-3.0D 17 H R 40 185 96 16 5.0 XC.. 1705.. E07

E01 11807484 11843205
E02 11807480 11843205
Multi-function tools / EcoCut
E03 11684214 11488748
E04 11684216 11206195
E05 11227305 11843208
E06 11610311 8095012000
E07 11801441 8095012100

E28+E29 E38 E15-E17
