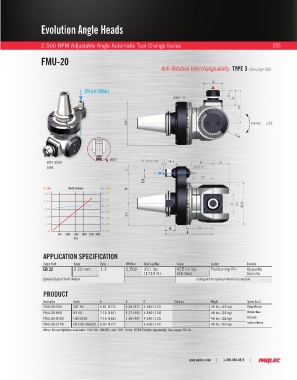

P. 157
Evolution Angle Heads
2,500 RPM Adjustable Angle Automatic Tool Change Series 155
FMU-20
Anti-Rotation Interchangeability: TYPE 3 (See page166)
150 psi (10bar)
Ø203
ER32 Ø2/20
Collet
HP : KW Performances Nm : in/lbs
20 : 15 60 : 531
55 : 487
16 : 12
50 : 443
12 : 9
45 : 398
8 : 6 40 : 354
4 : 3 35 : 310
0 30 : 266
500 1000 1500 2000 2500 3000
Rpm
APPLICATION SPECIFICATION
Output Shaft Range Ratio RPM Max Axial Load Max Torque Coolant Direction
ER 32 2-20 mm 1:1 2,500 391 lbs. 425 in/ lbs. Positioning Pin Opposite
(1740 N) (48 Nm) Spindle
Optional Output Shaft: Weldon Configured for optional internal air pressure
PRODUCT
Description Shank A B H H Options Weight Spares (Incl.)
FMU-20-C50 CAT 50 6.81 (173) 1.46 (37) 4.330 (110) - 48 lbs. (22 kg) Stop Block
FMU-20-B50 BT 50 7.12 (181) 1.77 (45) 4.330 (110) - 48 lbs. (22 kg) Wrenches
FMU-20-H100 HSK100A 7.16 (182) 1.89 (48) 4.330 (110) - 48 lbs. (22 kg) Grease
Instructions
FMU-20-CTP8 C8 (ISO 26623) 6.97 (177) - 4.330 (110) - 48 lbs. (22 kg)
Other Shank Options available: HSK 80, KM 80, and 100. Order ER32 Collets seperately. See pages 55-61.
