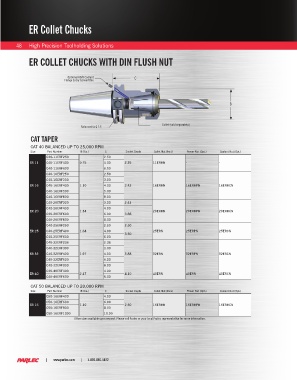

Page 50 - Parlec Catalog

ER Collet Chucks

48 High Precision Toolholding Solutions

ER COLLET CHUCKS WITH DIN FLUSH NUT

Optional AD/B Coolant C
Flange Entry Convertible

B

Collet (sold separately)
Balanced to G 2.5

CAT TAPER
CAT 40 BALANCED UP TO 25,000 RPM
Size Part Number B Dia.) C Socket Depth Collet Nut (Incl.) Power Nut (Opt.) Coolant Nut (Opt.)
C40-11ERF250 2.50
ER 11 C40-11ERF400 0.75 4.00 2.25 11ERHN - -
C40-11ERF600 6.00
C40-16ERF250 2.50
C40-16ERF300 3.00
ER 16 C40-16ERF400 1.10 4.00 2.43 16ERHN 16ERHPN 16ERHCN
C40-16ERF500 5.00
C40-16ERF800 8.00
C40-20ERF300 3.00 2.43
C40-20ERF400 4.00
ER 20 1.34 20ERHN 20ERHPN 20ERHCN
C40-20ERF600 6.00 3.88
C40-20ERF800 8.00
C40-25ERF250 2.50 2.50
ER 25 C40-25ERF400 1.64 4.00 25ERN 25ERPN 25ERCN
3.50
C40-25ERF600 6.00
C40-32ERF236 2.36
C40-32ERF300 3.00
ER 32 C40-32ERF400 1.97 4.00 3.88 32ERN 32ERPN 32ERCN
C40-32ERF600 6.00
C40-32ERF800 8.00
C40-40ERF400 4.00
ER 40 2.47 4.10 40ERN 40ERN 40ERCN
C40-40ERF600 6.00
CAT 50 BALANCED UP TO 20,000 RPM
Size Part Number B Dia.) C Socket Depth Collet Nut (Incl.) Power Nut (Opt.) Coolant Nut (Opt.)
C50-16ERF400 4.00
C50-16ERF600 6.00
ER 16 1.10 2.50 16ERHN 16ERHPN 16ERHCN
C50-16ERF800 8.00
C50-16ERF1000 10.00
Other sizes available upon request. Please call Parlec or your local Parlec representative for more information.
