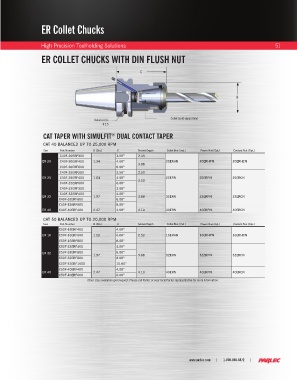

Page 53 - Parlec Catalog

ER Collet Chucks

High Precision Toolholding Solutions 51
ER COLLET CHUCKS WITH DIN FLUSH NUT

C

B

Balanced to Collet (sold separately)
G 2.5

CAT TAPER WITH SIMULFIT DUAL CONTACT TAPER
®
CAT 40 BALANCED UP TO 25,000 RPM
Size Part Number B (Dia.) C Socket Depth Collet Nut (Incl.) Power Nut (Opt.) Coolant Nut (Opt.)
C40F-20ERF300 3.00” 2.43
ER 20 C40F-20ERF400 1.34 4.00” 20ERHN 20ERHPN 20ERHCN
3.88
C40F-20ERF600 6.00”
C40F-25ERF250 2.50” 2.50
ER 25 C40F-25ERF400 1.64 4.00” 25ERN 25ERPN 25ERCN
3.50
C40F-25ERF600 6.00”
C40F-32ERF300 3.00”
C40F-32ERF400 4.00”
ER 32 1.97 3.88 32ERN 32ERPN 32ERCN
C40F-32ERF600 6.00”
C40F-32ERF800 8.00”
ER 40 C40F-40ERF400 2.47 4.00” 4.10 40ERN 40ERPN 40ERCN
CAT 50 BALANCED UP TO 20,000 RPM
Size Part Number B (Dia.) C Socket Depth Collet Nut (Incl.) Power Nut (Opt.) Coolant Nut (Opt.)
C50F-16ERF400 4.00”
ER 16 C50F-16ERF600 1.10 6.00” 2.50 16ERHN 16ERHPN 16ERHCN
C50F-16ERF800 8.00”
C50F-32ERF400 4.00”
ER 32 C50F-32ERF600 1.97 6.00” 3.88 32ERN 32ERPN 32ERCN
C50F-32ERF800 8.00”
C50F-32ERF1000 10.00”
C50F-40ERF400 4.00”
ER 40 2.47 4.10 40ERN 40ERPN 40ERCN
C50F-40ERF600 6.00”
Other sizes available upon request. Please call Parlec or your local Parlec representative for more information.
