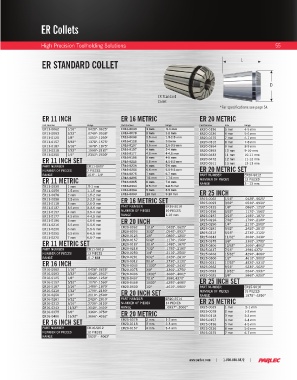

Page 57 - Parlec Catalog

ER Collets

High Precision Toolholding Solutions 55

ER STANDARD COLLET L

D

ER Standard
Collet
*For specifications see page 54.

ER 11 INCH ER 16 METRIC ER 20 METRIC

Part Number Size Range Part Number Size Range Part Number Size Range
ER11-0062 1/16” .0428"-.0625" ER16-0039 1 mm .5-1 mm ER20-0196 5 mm 4-5 mm
ER11-0093 3/32” .0740"-.0938" ER16-0078 2 mm 1-2 mm ER20-0236 6 mm 5-6 mm
ER11-0125 1/8” .1053"-.1250" ER16-0098 2.5 mm 1.5-2.5 mm ER20-0275 7 mm 6-7 mm
ER11-0157 5/32” .1378"-.1575" ER16-0118 3 mm 2-3mm ER20-0315 8 mm 7-8 mm
ER11-0187 3/16” .1678"-.1875" ER16-0137 3.5 mm 2.5-3.5 mm ER20-0354 9 mm 8-9 mm
ER11-0218 7/32” .1990"-.2187" ER16-0157 4 mm 3-4 mm ER20-0393 10 mm 9-10 mm
ER11-0250 1/4” .2303"-.2500" ER16-0177 4.5 mm 4-4.5 mm ER20-0433 11 mm 10-11 mm
ER 11 INCH SET ER16-0196 5 mm 4-5 mm ER20-0472 12 mm 11-12 mm
4.5-5.5 mm
ER16-0216
5.5 mm
PART NUMBER ER11-S007 ER16-0236 6 mm 5-6 mm ER20-0511 13 mm 12-13 mm
NUMBER OF PIECES 7 PIECES ER16-0255 6.5 mm 5.5-6.5 mm ER 20 METRIC SET
RANGE 1/16" - 1/4" ER16-0275 7 mm 6-7 mm PART NUMBER ER20-S012
ER 11 METRIC ER16-0295 7.5 mm 7-7.5 mm NUMBER OF PIECES 12 PIECES
7-8 mm
8 mm
ER16-0315
2 - 13 mm
RANGE
ER11-0039 1 mm .5-1 mm ER16-0334 8.5 mm 8-8.5 mm
ER11-0059 1.5 mm 1-1.5 mm ER16-0354 9 mm 8-9 mm ER 25 INCH
ER11-0078 2 mm 1.5-2 mm ER16-0393 10 mm 9-10 mm
ER11-0098 2.5 mm 2-2.5 mm ER 16 METRIC SET ER25-0062 1/16” .0428"-.0625"
ER11-0118 3 mm 2.5-3 mm ER25-0093 3/32” .0540"-.0930"
ER11-0137 3.5 mm 3-3.5 mm PART NUMBER ER16-S010 ER25-0125 1/8” .0860"-.1250"
ER11-0157 4 mm 3.5-4 mm NUMBER OF PIECES 10 PIECES ER25-0156 5/32” .1170"-.1560"
ER11-0177 4.5 mm 4-4.5 mm RANGE 1-10 mm ER25-0187 3/16” .1480"-.1870"
ER11-0196 5 mm 4.5-5 mm ER 20 INCH ER25-0218 7/32” .1790"-.2180"
ER11-0216 5.5 mm 5-5.5 mm ER25-0250 1/4” .2110"-.2500"
ER11-0236 6 mm 5.5-6 mm ER20-0062 1/16” .0428"-.0625" ER25-0281 9/32” .2420"-.2810"
ER11-0255 6.5 mm 6-6.5 mm ER20-0093 3/32” .0540"-.0937" ER25-0312 5/16” .2730"-.3120"
ER11-0275 7 mm 6.5-7 mm ER20-0125 1/8” .0860"-.1250" ER25-0343 11/32” .3040"-.3430"
.1170"-.1560"
5/32”
ER20-0157
ER 11 METRIC SET ER20-0187 3/16” .1480"-.1870" ER25-0375 3/8” .3360"-.3750"
ER25-0406
.3666"-.4062"
13/32”
PART NUMBER ER11-S013 ER20-0218 7/32” .1790"-.2180" ER25-0437 7/16” .3980.4370"
NUMBER OF PIECES 13 PIECES ER20-0250 1/4” .2110"-.2500" ER25-0468 15/32” .4290"-.4680"
RANGE .5 -7 MM ER20-0281 9/32” .2420"-.2810" ER25-0500 1/2” .4610"-.5000"
ER 16 INCH ER20-0312 5/16” .2730"-.3120" ER25-0531 17/32” .4920"-.5310"
11/32”
ER20-0343
.3040"-.3430"
ER16-0062 1/16” .0428"-.0625" ER20-0375 3/8” .3360"-.3750" ER25-0562 9/16” .5230"-.5620"
ER25-0593
.5544"-.5937"
19/32”
ER16-0093 3/32” .0540"-.0937" ER20-0406 13/32” .3666"-.4062" ER25-0625 5/8” .5860"-.6250"
ER16-0125 1/8” .0860"-.1250" ER20-0437 7/16” .3980.4370"
ER16-0157 5/32” .1170"-.1560" ER20-0468 15/32” .4290"-.4680" ER 25 INCH SET
ER16-0187 3/16” .1480"-.1870" ER20-0500 1/2” .4610"-.5000" PART NUMBER ER25-S016
ER16-0218 7/32” .1790"-.2180" ER 20 INCH SET NUMBER OF PIECES 15 PIECES
ER16-0250 1/4” .2110"-.2500" RANGE .1875”-.6250”
ER16-0281 9/32” .2420"-.2810" PART NUMBER ER20-S014 ER 25 METRIC
ER16-0312 5/16” .2730"-.3120" NUMBER OF PIECES 14 PIECES
ER16-0343 11/32” .3040"-.3430" RANGE . 0937”-.5000” ER25-0039 1 mm .5-1 mm
ER16-0375 3/8” .3360"-.3750" ER 20 METRIC ER25-0078 2 mm 1-2 mm
ER16-0406 13/32” .3666"-.4062" ER25-0118 3 mm 2-3 mm
ER 16 INCH SET ER20-0078 2 mm 1-2 mm ER25-0157 4 mm 3-4 mm
2-3 mm
3 mm
ER20-0118
4-5 mm
5 mm
ER25-0196
PART NUMBER ER16-S012 ER20-0157 4 mm 3-4 mm ER25-0236 6 mm 5-6 mm
NUMBER OF PIECES 12 PIECES ER25-0275 7 mm 6-7 mm
RANGE .0625" - .4062"
