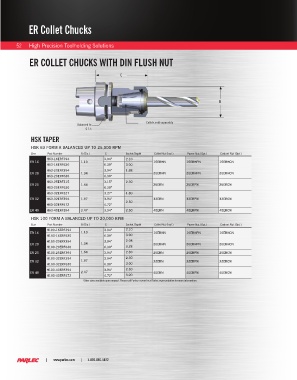

Page 54 - Parlec Catalog

ER Collet Chucks

52 High Precision Toolholding Solutions

ER COLLET CHUCKS WITH DIN FLUSH NUT

C

B

Collets sold separately
Balanced to
G 2.5
HSK TAPER

HSK 63 FORM A BALANCED UP TO 25,000 RPM
Size Part Number B (Dia.) C Socket Depth Collet Nut (Incl.) Power Nut (Opt.) Coolant Nut (Opt.)
H63-16ERF394 3.94” 2.10
ER 16 1.10 16ERHN 16ERHPN 16ERHCN
H63-16ERF630 6.30” 3.00
H63-20ERF394 3.94” 1.88
ER 20 1.34 20ERHN 20ERHPN 20ERHCN
H63-20ERF630 6.30”
H63-25ERF315 3.15” 2.30
ER 25 1.64 25ERN 25ERPN 25ERCN
H63-25ERF630 6.30”
H63-32ERF327 3.27” 1.80
ER 32 H63-32ERF394 1.97 3.94” 32ERN 32ERPN 32ERCN
2.50
H63-32ERF472 4.72”
ER 40 H63-40ERF394 2.47 3.94” 2.50 40ERN 40ERPN 40ERCN
HSK 100 FORM A BALANCED UP TO 20,000 RPM
Size Part Number B (Dia.) C Socket Depth Collet Nut (Incl.) Power Nut (Opt.) Coolant Nut (Opt.)
H100-16ERF394 3.94” 2.10
ER 16 1.10 16ERHN 16ERHPN 16ERHCN
H100-16ERF630 6.30” 3.00
H100-20ERF394 3.94” 2.08
ER 20 1.34 20ERHN 20ERHPN 20ERHCN
H100-20ERF630 6.30” 3.28
ER 25 H100-25ERF394 1.64 3.94” 2.30 25ERN 25ERPN 25ERCN
H100-32ERF394 3.94” 2.30
ER 32 1.97 32ERN 32ERPN 32ERCN
H100-32ERF630 6.30” 3.00
H100-40ERF394 3.94” 2.30
ER 40 2.47 40ERN 40ERPN 40ERCN
H100-40ERF472 4.72” 3.00
Other sizes available upon request. Please call Parlec or your local Parlec representative for more information.
