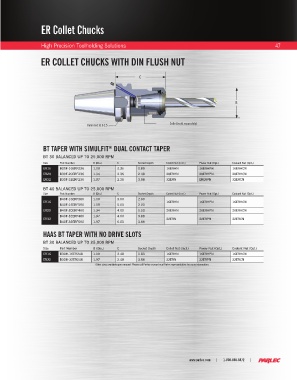

Page 49 - Parlec Catalog

ER Collet Chucks

High Precision Toolholding Solutions 47

ER COLLET CHUCKS WITH DIN FLUSH NUT

C

B

Balanced to G 2.5 Collet (sold separately)

BT TAPER WITH SIMULFIT DUAL CONTACT TAPER
®
BT 30 BALANCED UP TO 25,000 RPM
Size Part Number B (Dia.) C Socket Depth Collet Nut (Incl.) Power Nut (Opt.) Coolant Nut (Opt.)
ER16 B30F-16ERF236 1.10 2.36 1.83 16ERHN 16ERHPH 16ERHCN
ER20 B30F-20ERF236 1.34 2.36 2.48 20ERHN 20ERHPN. 20ERHCN
ER32 B30F-32ERF236 1.97 2.36 3.88 32ERN ERERPN 32ERCN

BT 40 BALANCED UP TO 25,000 RPM
Size Part Number B (Dia.) C Socket Depth Collet Nut (Incl.) Power Nut (Opt.) Coolant Nut (Opt.)
B40F-16ERF300 1.10 3.00 2.00
ER16 16ERHN 16ERHPN 16ERHCN
B40F-16ERF500 1.10 5.00 2.00
ER20 B40F-20ERF400 1.34 4.00 1.50 20ERHN 20ERHPN 20ERHCN
B40F-32ERF400 1.97 4.00 3.88
ER32 32ERN 32ERPN 32ERCN
B40F-32ERF600 1.97 6.00 3.88

HAAS BT TAPER WITH NO DRIVE SLOTS
BT 30 BALANCED UP TO 25,000 RPM
Size Part Number B (Dia.) C Socket Depth Collet Nut (Incl.) Power Nut (Opt.) Coolant Nut (Opt.)
ER16 B30H-16ER248 1.10 2.48 1.83 16ERHN 16ERHPN 16ERHCN
ER32 B30H-32ER248 1.97 2.48 3.88 32ERN 32ERPN 32ERCN
Other sizes available upon request. Please call Parlec or your local Parlec representative for more information.
