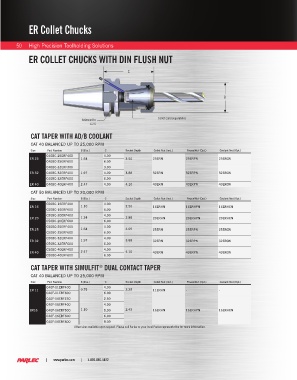

Page 52 - Parlec Catalog

ER Collet Chucks

50 High Precision Toolholding Solutions
ER COLLET CHUCKS WITH DIN FLUSH NUT

C

B

Collet (sold separately)
Balanced to
G 2.5
CAT TAPER WITH AD/B COOLANT

CAT 40 BALANCED UP TO 25,000 RPM
Size Part Number B (Dia.) C Socket Depth Collet Nut (Incl.) Power Nut (Opt.) Coolant Nut (Opt.)
C40BC-25ERF400 4.00
ER 25 1.64 3.50 25ERN 25ERPN 25ERCN
C40BC-25ERF600 6.00
C40BC-32ERF300 3.00
ER 32 C40BC-32ERF400 1.97 4.00 3.88 32ERN 32ERPN 32ERCN
C40BC-32ERF600 6.00
ER 40 C40BC-40ERF400 2.47 4.00 4.10 40ERN 40ERPN 40ERCN
CAT 50 BALANCED UP TO 20,000 RPM
Size Part Number B (Dia.) C Socket Depth Collet Nut (Incl.) Power Nut (Opt.) Coolant Nut (Opt.)
C50BC-16ERF400 4.00
ER 16 1.10 2.50 16ERHN 16ERHPN 16ERHCN
C50BC-16ERF600 6.00
C50BC-20ERF400 4.00
ER 20 1.34 3.88 20ERHN 20ERHPN 20ERHCN
C50BC-20ERF600 6.00
C50BC-25ERF400 4.00
ER 25 1.64 4.00 25ERN 25ERPN 25ERCN
C50BC-25ERF600 6.00
C50BC-32ERF400 4.00
ER 32 1.97 3.88 32ERN 32ERPN 32ERCN
C50BC-32ERF600 6.00
C50BC-40ERF400 4.00
ER 40 2.47 4.10 40ERN 40ERPN 40ERCN
C50BC-40ERF600 6.00

CAT TAPER WITH SIMULFIT DUAL CONTACT TAPER
®
CAT 40 BALANCED UP TO 25,000 RPM
Size Part Number B (Dia.) C Socket Depth Collet Nut (Incl.) Power Nut (Opt.) Coolant Nut (Opt.)
C40F-11ERF400 4.00
ER 11 0.75 2.25 11ERHN - -
C40F-11ERF600 6.00
C40F-16ERF250 2.50
C40F-16ERF400 4.00
ER16 C40F-16ERF500 1.10 5.00 2.43 16ERHN 16ERHPN 16ERHCN
C40F-16ERF600 6.00
C40F-16ERF800 8.00
Other sizes available upon request. Please call Parlec or your local Parlec representative for more information.
