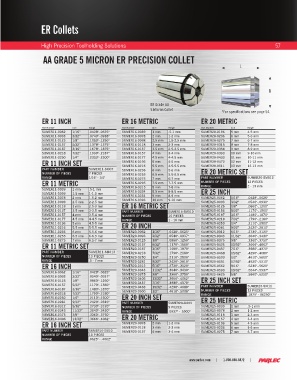

Page 59 - Parlec Catalog

ER Collets

High Precision Toolholding Solutions 57

AA GRADE 5 MICRON ER PRECISION COLLET
L

D

ER Grade AA
5 Micron Collet *For specifications see page 54.

ER 11 INCH ER 16 METRIC ER 20 METRIC
Part Number Size Range Part Number Size Range Part Number Size Range
5UMER11-0062 1/16” .0428"-.0625" 5UMER16-0039 1 mm .5-1 mm 5UMER20-0196 5 mm 4-5 mm
5UMER11-0093 3/32” .0740"-.0938" 5UMER16-0078 2 mm 1-2 mm 5UMER20-0236 6 mm 5-6 mm
5UMER11-0125 1/8” .1053"-.1250" 5UMER16-0098 2.5 mm 1.5-2.5 mm 5UMER20-0275 7 mm 6-7 mm
5UMER11-0157 5/32” .1378"-.1575" 5UMER16-0118 3 mm 2-3 mm 5UMER20-0315 8 mm 7-8 mm
5UMER11-0187 3/16” .1678"-.1875" 5UMER16-0137 3.5 mm 2.5-3.5 mm 5UMER20-0354 9 mm 8-9 mm
5UMER11-0218 7/32” .1990"-.2187" 5UMER16-0157 4 mm 3-4 mm 5UMER20-0393 10 mm 9-10 mm
5UMER11-0250 1/4” .2303"-.2500" 5UMER16-0177 4.5 mm 4-4.5 mm 5UMER20-0433 11 mm 10-11 mm
ER 11 INCH SET 5UMER16-0196 5 mm 4-5 mm 5UMER20-0472 12 mm 11-12 mm
13 mm
5UMER20-0511
12-13 mm
5UMER16-0216
4.5-5.5 mm
5.5 mm
PART NUMBER 5UMER11-SI007 5UMER16-0236 6 mm 5-6 mm
NUMBER OF PIECES 7 PIECES 5UMER16-0255 6.5 mm 5.5-6.5 mm ER 20 METRIC SET
RANGE 1/16" - 1/4" 5UMER16-0275 7 mm 6-7 mm PART NUMBER 5UMER20-SM012
ER 11 METRIC 5UMER16-0295 7.5 mm 7-7.5 mm NUMBER OF PIECES 12 PIECES
RANGE
2 - 13 mm
5UMER11-0039 1 mm .5-1 mm 5UMER16-0315 8 mm 7-8 mm
5UMER11-0059 1.5 mm 1-1.5 mm 5UMER16-0334 8.5 mm 8-8.5 mm ER 25 INCH
5UMER11-0078 2 mm 1.5-2 mm 5UMER16-0354 9 mm 8-9 mm 5UMER25-0062 1/16” .0428"-.0625"
10 mm
9-10 mm
5UMER16-0393
5UMER11-0098 2.5 mm 2-2.5 mm 5UMER25-0093 3/32” .0540"-.0930"
5UMER11-0118 3 mm 2.5-3 mm ER 16 METRIC SET 5UMER25-0125 1/8” .0860"-.1250"
5UMER11-0137 3.5 mm 3-3.5 mm PART NUMBER 5UMER16-SM010 5UMER25-0156 5/32” .1170"-.1560"
5UMER11-0157 4 mm 3.5-4 mm NUMBER OF PIECES 10 PIECES 5UMER25-0187 3/16” .1480"-.1870"
5UMER11-0177 4.5 mm 4-4.5 mm RANGE 1 - 10 mm 5UMER25-0218 7/32” .1790"-.2180"
5UMER11-0196 5 mm 4.5-5 mm 5UMER25-0250 1/4” .2110"-.2500"
5UMER11-0216 5.5 mm 5-5.5 mm ER 20 INCH 5UMER25-0281 9/32” .2420"-.2810"
5UMER11-0236 6 mm 5.5-6 mm 5UMER20-0062 1/16” .0428"-.0625" 5UMER25-0312 5/16” .2730"-.3120"
5UMER11-0255 6.5 mm 6-6.5 mm 5UMER20-0093 3/32” .0540"-.0937" 5UMER25-0343 11/32” .3040"-.3430"
5UMER11-0275 7 mm 6.5-7 mm 5UMER20-0125 1/8” .0860"-.1250" 5UMER25-0375 3/8” .3360"-.3750"
ER 11 METRIC SET 5UMER20-0157 5/32” .1170"-.1560" 5UMER25-0406 13/32” .3666"-.4062"
5UMER20-0187
7/16”
.1480"-.1870"
5UMER25-0437
3/16”
.3980"-.4370"
PART NUMBER 5UMER11-SM013 5UMER20-0218 7/32” .1790"-.2180" 5UMER25-0468 15/32” .4290"-.4680"
NUMBER OF PIECES 13 PIECES 5UMER20-0250 1/4” .2110"-.2500" 5UMER25-0500 1/2” .4610"-.5000"
RANGE .5 - 7 mm 5UMER20-0281 9/32” .2420"-.2810" 5UMER25-0531 17/32” .4920"-.5310"
ER 16 INCH 5UMER20-0312 5/16” .2730"-.3120" 5UMER25-0562 9/16” .5230"-.5620"
5UMER16-0062 1/16” .0428"-.0625" 5UMER20-0343 11/32” .3040"-.3430" 5UMER25-0593 19/32” .5544"-.5937"
3/8”
5UMER20-0375
.3360"-.3750"
5/8”
.5860"-.6250"
5UMER25-0625
5UMER16-0093 3/32” .0540"-.0937" 5UMER20-0406 13/32” .3666"-.4062"
5UMER16-0125 1/8” .0860"-.1250" ER 25 INCH SET
5UMER16-0157 5/32” .1170"-.1560" 5UMER20-0437 7/16” .3980"-.4370" PART NUMBER 5UMER25-SI011
.4290"-.4680"
15/32”
5UMER20-0468
5UMER16-0187 3/16” .1480"-.1870" 5UMER20-0500 1/2” .4610"-.5000" NUMBER OF PIECES 12 PIECES
5UMER16-0218 7/32” .1790"-.2180" RANGE .1875" - 06250"
5UMER16-0250 1/4” .2110"-.2500" ER 20 INCH SET
5UMER16-0281 9/32” .2420"-.2810" PART NUMBER 5UMER20-SI009 ER 25 METRIC
5UMER16-0312 5/16” .2730"-.3120" NUMBER OF PIECES 9 PIECES 5UMER25-0039 1 mm .5-1 mm
5UMER16-0343 11/32” .3040"-.3430" RANGE .0937" - .5000" 5UMER25-0078 2 mm 1-2 mm
5UMER16-0375 3/8” .3360"-.3750" ER 20 METRIC 5UMER25-0118 3 mm 2-3 mm
5UMER16-0406 13/32” .3666"-.4062" 5UMER25-0157 4 mm 3-4 mm
ER 16 INCH SET 5UMER20-0078 2 mm 1-2 mm 5UMER25-0196 5 mm 4-5 mm
6 mm
5-6 mm
3 mm
5UMER25-0236
2-3 mm
5UMER20-0118
PART NUMBER 5UMER16-SI010 5UMER20-0157 4 mm 3-4 mm 5UMER25-0275 7 mm 6-7 mm
NUMBER OF PIECES 10 PIECES
RANGE .0625" - .4062"
