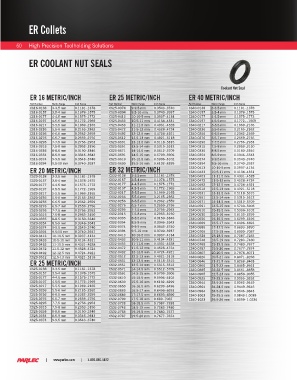

Page 62 - Parlec Catalog

ER Collets

60 High Precision Toolholding Solutions

ER COOLANT NUT SEALS

Coolant Nut Seal
ER 16 METRIC/INCH ER 25 METRIC/INCH ER 40 METRIC/INCH

Part Number Metric Range Inch Rance Part Number Metric Range Inch Rance Part Number Metric Range Inch Rance
CS16-0138 3-3.5 mm 0.1181-.1378 CS25-0374 9-9.5 mm 0.3543-.3740 CS40-0138 3-3.5 mm 0.1181-.1378
CS16-0157 3.5-4 mm 0.1378-.1575 CS25-0394 9.5-10 mm 0.3740-.3937 CS40-0157 3.5-4 mm 0.1378-.1575
CS16-0177 4-4.5 mm 0.1575-.1772 CS25-0413 10-10-5 mm 0.3937-.4134 CS40-0177 4-4.5 mm 0.1575-.1772
CS16-0197 4.5-5 mm 0.1772-.1969 CS25-0433 10-5-11 mm 0.4134-.4331 CS40-0197 4.5-5 mm 0.1772– .1969
CS16-0217 5-5.5 mm 0.1969-.2165 CS25-0453 11-11.5 mm 0.4331-.4528 CS40-0217 5-5.5 mm 0.1969-.2165
CS16-0236 5.5-6 mm 0.2165-.2362 CS25-0472 11-5-12 mm 0.4528-.4724 CS40-0236 5.5-6 mm 0.2165-.2362
CS16-0256 6-6.5 mm 0.2362-.2559 CS25-0492 12-12.5 mm 0.4724-.4921 CS40-0256 6-6.5 mm 0.2362-.2559
CS16-0276 6.5-7 mm 0.2559-.2756 CS25-0512 12.5-13 mm 0.4921-.5118 CS40-0276 6.5-7 mm 0.2559-.2756
CS16-0295 7-7.5 mm 0.2756-.2953 CS25-0531 13-13.5 mm 0.5118-.5315 CS40-0295 7-7.5 mm 0.2756-.2953
CS16-0315 7.5-8 mm 0.2953-.3150 CS25-0551 13.5-14 mm 0.5315-.5512 CS40-0315 7.5-8 mm 0.2953-.3150
CS16-0335 8-8.5 mm 0.3150-.3346 CS25-0571 14-14.5 mm 0.5512-.5709 CS40-0335 8-8.5 mm 0.3150-.3346
CS16-0354 8.5-9 mm 0.3346-.3543 CS25-0591 14.5-15 mm 0.5709-.5906 CS40-0354 8.5-9 mm 0.3346-.3543
CS16-0374 9-9.5 mm 0.3543-.3740 CS25-0610 15-15.5 mm 0.5906-.6102 CS40-0374 9-9.5 mm 0.3543-.3740
CS16-0394 9.5-10 mm 0.3740-.3937 CS25-0630 15.5-16 mm 0.6102-.6299 CS40-0394 9.5-10 mm 0.3740-.3937
ER 20 METRIC/INCH ER 32 METRIC/INCH CS40-0413 10-10-5 mm 0.3937-.4134
0.4134-.4331
CS40-0433
10-5-11 mm
CS20-0138 3-3.5 mm 0.1181-.1378 CS32-0138 3-3.5 mm 0.1181-.1378 CS40-0453 11-11.5 mm 0.4331-.4528
CS20-0157 3.5-4 mm 0.1378-.1575 CS32-0157 3.5-4 mm 0.1378-.1575 CS40-0472 11-5-12 mm 0.4528-.4724
CS20-0177 4-4.5 mm 0.1575-.1772 CS32-0177 4-4.5 mm 0.1575-.1772 CS40-0492 12-12.5 mm 0.4724-.4921
CS20-0197 4.5-5 mm 0.1772-.1969 CS32-0197 4.5-5 mm 0.1772-.1969 CS40-0512 12.5-13 mm 0.4921-.5118
CS20-0217 5-5.5 mm 0.1969-.2165 CS32-0217 5-5.5 mm 0.1969-.2165 CS40-0531 13-13.5 mm 0.5118-.5315
CS20-0236 5.5-6 mm 0.2165-.2362 CS32-0236 5.5-6 mm 0.2165-.2362 CS40-0551 13.5-14 mm 0.5315-.5512
CS20-0256 6-6.5 mm 0.2362-.2559 CS32-0256 6-6.5 mm 0.2362-.2559 CS40-0571 14-14.5 mm 0.5512-.5709
CS20-0276 6.5-7 mm 0.2559-.2756 CS32-0276 6.5-7 mm 0.2559-.2756 CS40-0591 14.5-15 mm 0.5709-.5906
CS20-0295 7-7.5 mm 0.2756-.2953 CS32-0295 7-7.5 mm 0.2756-.2953 CS40-0610 15-15.5 mm 0.5906-.6102
CS20-0315 7.5-8 mm 0.2953-.3150 CS32-0315 7.5-8 mm 0.2953-.3150 CS40-0630 15.5-16 mm 0.6102-.6299
CS20-0335 8-8.5 mm 0.3150-.3346 CS32-0335 8-8.5 mm 0.3150-.3346 CS40-0650 16-16.5 mm 0.6299-.6496
CS20-0354 8.5-9 mm 0.3346-.3543 CS32-0354 8.5-9 mm 0.3346-.3543 CS40-0669 16.5-17 mm 0.6496-.6693
CS20-0374 9-9.5 mm 0.3543-.3740 CS32-0374 9-9.5 mm 0.3543-.3740 CS40-0689 17-17.5 mm 0.6693-.6890
CS20-0394 9.5-10 mm 0.3740-.3937 CS32-0394 9.5-10 mm 0.3740-.3937 CS40-0709 17.5-18 mm 0.6890-.7087
CS20-0413 10-10-5 mm 0.3937-.4134 CS32-0413 10-10-5 mm 0.3937-.4134 CS40-0728 18-18.5 mm 0.7087-.7283
CS20-0433 10-5-11 mm 0.4134-.4331 CS32-0433 10-5-11 mm 0.4134-.4331 CS40-0748 18.5-19 mm 0.7283-.7480
CS20-0453 11-11.5 mm 0.4331-.4528 CS32-0453 11-11.5 mm 0.4331-.4528 CS40-0768 19-19.5 mm 0.7480-.7677
CS20-0472 11-5-12 mm 0.4528-.4724 CS32-0472 11-5-12 mm 0.4528-.4724 CS40-0787 19.5-20 mm 0.7677-.7874
CS20-0492 12-12.5 mm 0.4724-.4921 CS32-0492 12-12.5 mm 0.4724-.4921 CS40-0807 20-20.5 mm 0.7874-.8071
CS20-0512 12.5-13 mm 0.4921-.5118 CS32-0512 12.5-13 mm 0.4921-.5118 CS40-0826 20.5-21 mm 0.8071-.8268
ER 25 METRIC/INCH CS32-0531 13-13.5 mm 0.5118-.5315 CS40-0846 21-21.5 mm 0.8268-.8465
0.5315-.5512
13.5-14 mm
CS32-0551
0.8465-.8661
21.5-22 mm
CS40-0866
CS25-0138 3-3.5 mm 0.1181-.1378 CS32-0571 14-14.5 mm 0.5512-.5709 CS40-0885 22-22.5 mm 0.8661-.8858
CS25-0157 3.5-4 mm 0.1378-.1575 CS32-0591 14.5-15 mm 0.5709-.5906 CS40-0905 22.5-23 mm 0.8858-.9055
CS25-0177 4-4.5 mm 0.1575-.1772 CS32-0610 15-15.5 mm 0.5906-.6102 CS40-0925 23-23.5 mm 0.9055-.9252
CS25-0197 4.5-5 mm 0.1772-.1969 CS32-0630 15.5-16 mm 0.6102-.6299 CS40-0944 23.5-24 mm 0.9252-.9449
CS25-0217 5-5.5 mm 0.1969-.2165 CS32-0650 16-16.5 mm 0.6299-.6496 CS40-0964 24-24.5 mm 0.9449-.9646
CS25-0236 5.5-6 mm 0.2165-.2362 CS32-0669 16.5-17 mm 0.6496-.6693 CS40-0984 24.5-25 mm 0.9646-.9843
CS25-0256 6-6.5 mm 0.2362-.2559 CS32-0689 17-17.5 mm 0.6693-.6890 CS40-1003 25-25.5 mm 0.9843-1.0039
CS25-0276 6.5-7 mm 0.2559-.2756 CS32-0709 17.5-18 mm 0.689-.7087 CS40-1023 25.5-26 mm 1.0039- 1.0236
CS25-0295 7-7.5 mm 0.2756-.2953 CS32-0728 18-18.5 mm 0.7087-.7283
CS25-0315 7.5-8 mm 0.2953-.3150 CS32-0748 18.5-19 mm 0.7283-.7480
CS25-0335 8-8.5 mm 0.3150-.3346 CS32-0768 19-19.5 mm 0.7480-.7677
CS25-0354 8.5-9 mm 0.3346-.3543 CS32-0787 19.5-20 mm 0.7677-.7874
CS25-0374 9-9.5 mm 0.3543-.3740
