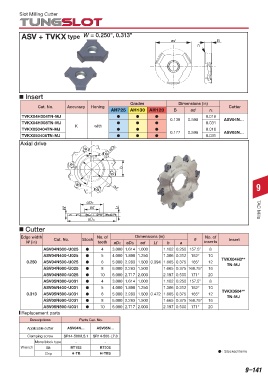

Page 740 - Tungaloy Catalog

Slot Milling Cutter

ASV + TVKX type W = 0.250", 0.313"
B

Insert
Grades Dimensions (in)
Cat. No. Accuracy Honing Cutter
AH725 AH130 AH120 B ød rε
TVKX04H304TN-MJ d d d 0.138 0.598 0.016 ASV04N…
TVKX04H308TN-MJ d d d 0.031
K with
TVKX050404TN-MJ d d d 0.016
TVKX050408TN-MJ d d d 0.177 0.598 0.031 ASV05N…
Axial drive

9

Cutter TAC Mills

Edge width Cat. No. Stock No. of Dimensions (in) θ No. of Insert
W (in) teeth øDc øDb ød Lf b a inserts
ASV04N300-U025 d 4 3.000 1.614 1.000 1.102 0.250 157.5° 8
ASV04N400-U025 d 5 4.000 1.890 1.250 1.386 0.312 162° 10
TVKX04H3**
0.250 ASV04N500-U025 d 6 5.000 2.283 1.500 0.394 1.665 0.375 165° 12 TN-MJ
ASV04N600-U025 d 8 6.000 2.283 1.500 1.665 0.375 168.75° 16
ASV04N800-U025 d 10 8.000 2.717 2.000 2.197 0.500 171° 20
ASV05N300-U031 d 4 3.000 1.614 1.000 1.102 0.250 157.5° 8
ASV05N400-U031 d 5 4.000 1.890 1.250 1.386 0.312 162° 10
0.313 ASV05N500-U031 d 6 5.000 2.283 1.500 0.472 1.665 0.375 165° 12 TVKX0504**
TN-MJ
ASV05N600-U031 d 8 6.000 2.283 1.500 1.665 0.375 168.75° 16
ASV05N800-U031 d 10 8.000 2.717 2.000 2.197 0.500 171° 20
Replacement parts
Descriptions Parts Cat. No.
Applicable cutter ASV04N… ASV05N…
Clamping screw SR14-500/L5.1 SR14-500-L7.0
Mono block type - -
Wrench Bit BT15S BT20S
Grip H-TB H-TBS d : Stocked items
Most unmarked items are available on a RFQ basis, contact your sales rep for more information.
9–141
