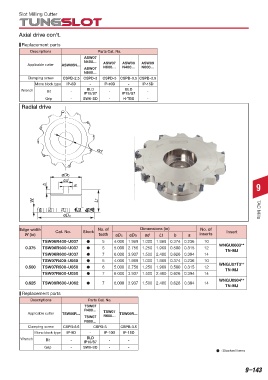

Page 742 - Tungaloy Catalog

Slot Milling Cutter

Axial drive con't.

Replacement parts
Descriptions Parts Cat. No.
ASW07
N400…
Applicable cutter ASW06N… ASW07 ASW09 ASW09
ASW07 N600… N400… N600…
N500…
Clamping screw CSPB-2.5 CSPD-3 CSPD-3 CSPB-3.5 CSPB-3.5
Mono block type IP-8D - IP-10D - IP-15D
Wrench Bit - BLD - BLD -
IP10/S7 IP15/S7
Grip - SW6-SD - H-TBS -
Radial drive

ød

øDb
ød
9
b a

W Lf

øDc TAC Mills

Edge width Cat. No. Stock No. of Dimensions (in) No. of Insert
W (in) teeth øDc øDb ød Lf b a inserts
TSW06R400-U037 d 5 4.000 1.969 1.000 1.969 0.374 0.236 10
0.375 TSW06R500-U037 d 6 5.000 2.756 1.250 1.969 0.500 0.315 12 WNGU0603**
TN-MJ
TSW06R600-U037 d 7 6.000 3.937 1.500 2.480 0.626 0.394 14
TSW07R400-U050 d 5 4.000 1.969 1.000 1.969 0.374 0.236 10
0.500 TSW07R500-U050 d 6 5.000 2.756 1.250 1.969 0.500 0.315 12 WNGU07T3**
TN-MJ
TSW07R600-U050 d 7 6.000 3.937 1.500 2.480 0.626 0.394 14
WNGU0904**
0.625 TSW09R600-U062 d 7 6.000 3.937 1.500 2.480 0.626 0.394 14
TN-MJ
Replacement parts
Descriptions Parts Cat. No.
TSW07
R400… TSW07
Applicable cutter TSW06R… TSW09R…
TSW07 R600…
R500…
Clamping screw CSPB-2.5 CSPD-3 CSPB-3.5
Mono block type IP-8D - IP-10D IP-15D
BLD
Wrench Bit - IP10/S7 - -
Grip - SW6-SD - -
d : Stocked items
Most unmarked items are available on a RFQ basis, contact your sales rep for more information.
9–143
