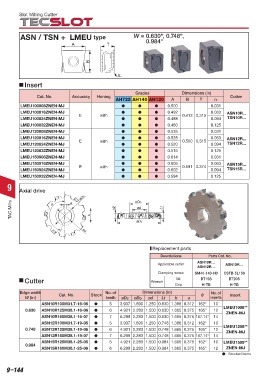

Slot Milling Cutter

ASN / TSN + LMEU type W = 0.630", 0.748",
0.984"

A T

B

r ε
Insert

Grades Dimensions (in)
Cat. No. Accuracy Honing Cutter
AH725 AH140 AH120 A B T rε
LMEU100808ZNEN-MJ d d d 0.500 0.031
LMEU100816ZNEN-MJ E with d d d 0.492 0.413 0.315 0.063 ASN10R...
LMEU100824ZNEN-MJ d d d 0.488 0.094 TSN10R...
LMEU100832ZNEN-MJ d d d 0.480 0.125
LMEU120808ZNEN-MJ d d d 0.535 0.031
LMEU120816ZNEN-MJ d d d 0.528 0.063 ASN12R...
E with 0.500 0.315
LMEU120824ZNEN-MJ d d d 0.520 0.094 TSN12R...
LMEU120832ZNEN-MJ d d d 0.516 0.125
LMEU150908ZNEN-MJ d d d 0.614 0.031
LMEU150916ZNEN-MJ d d d 0.606 0.063 ASN15R...
LMEU150924ZNEN-MJ E with d d d 0.602 0.591 0.374 0.094 TSN15R...
LMEU150932ZNEN-MJ d d d 0.594 0.125
9 Axial drive

TAC Mills

Replacement parts
Descriptions Parts Cat. No.
Applicable cutter ASN10R… ASN15R…
ASN12R…
Clamping screw SM40-143-H0 CSTB-5L159
Cutter Wrench Bit BT15S BT20S
Grip H-TB H-TB
Edge width Cat. No. Stock No. of Dimensions (in) θ No. of Insert
W (in) teeth øDc øDb ød Lf b a inserts
ASN10R100M31.7-16-05 d 5 3.937 1.890 1.250 0.630 1.386 0.312 162° 10
0.630 ASN10R125M38.1-16-06 d 6 4.921 2.283 1.500 0.630 1.665 0.375 165° 12 LMEU1008**
ZNEN-MJ
ASN10R160M38.1-16-07 d 7 6.299 2.283 1.500 0.630 1.665 0.375 167.14° 14
ASN12R100M31.7-19-05 d 5 3.937 1.890 1.250 0.748 1.386 0.312 162° 10
0.748 ASN12R125M38.1-19-06 d 6 4.921 2.283 1.500 0.748 1.665 0.375 165° 12 LMEU1208**
ZNEN-MJ
ASN12R160M38.1-19-07 d 7 6.299 2.283 1.500 0.748 1.665 0.375 167.14° 14
ASN15R125M38.1-25-05 d 5 4.921 2.283 1.500 0.984 1.665 0.375 162° 10 LMEU1509**
0.984
ASN15R160M38.1-25-06 d 6 6.299 2.283 1.500 0.984 1.665 0.375 165° 12 ZNEN-MJ
d : Stocked items
Most unmarked items are available on a RFQ basis, contact your sales rep for more information.
