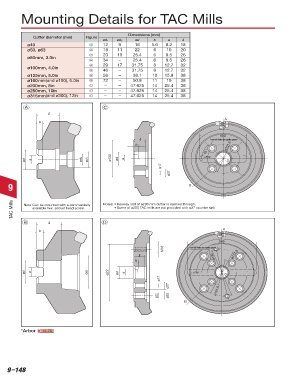

Mounting Details for TAC Mills

Dimensions (mm)
Cutter diameter (mm) Figure
ød 1 ød2 ød b a R
ø40 A 12 9 16 5.6 8.2 18
ø50, ø63 A 18 11 22 6 10 20
A 20 13 25.4 6 9.5 26
ø80mm, 3.0in
B 34 - 25.4 6 9.5 26
A 29 17 31.75 8 12.7 32
ø100mm, 4.0in
B 46 - 31.75 8 12.7 32
ø125mm, 5.0in B 56 - 38.1 10 15.9 38
ø160 mm(and ø150), 6.0in B 72 - 50.8 11 19 38
ø200mm, 8in C - - 47.625 14 25.4 38
ø250mm, 10in C - - 47.625 14 25.4 38
ø315mm(and ø300), 12in C - - 47.625 14 25.4 38
A C
R
A
b

150
R Four bolt holes are equally spaced.
b ø101.6
45°
ød a ød2 ød1 ø130 ød a ≤ R12 0
ø17
ø27

9 B

TAC Mills Note: Can be mounted with a commercially Notes: • Keyway slot of ø200 mm cutter is opened through.

• Some of ø200 TAC mills are not provided with ø27 counter sink.
available hex. socket head screw.
B R D
b A

245
M16 Four bolt holes are equally spaced.
R ø190 ø177.8
b

ød a ød1 ø22 ød a ≤ R12 0
ø17
ø27 ø101.6

ø22 ø32
B

*Arbor 12-76

Most unmarked items are available on a RFQ basis, contact your sales rep for more information.
