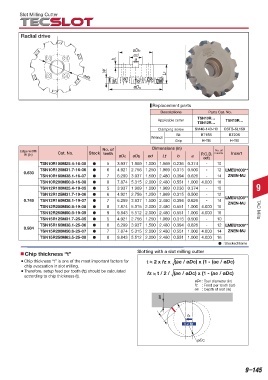

Page 744 - Tungaloy Catalog

Slot Milling Cutter

Radial drive

Replacement parts
Descriptions Parts Cat. No.
TSN10R…
Applicable cutter TSN15R…
TSN12R…
Clamping screw SM40-143-H0 CSTB-5L159
Bit BT15S BT20S
Wrench
Grip H-TB H-TB
No. of Dimensions (in)
No. of
Edge width Cat. No. inserts Insert
W (in) Stock teeth øDc øDb ød Lf b a P.C.D.
ød3
TSN10R100M25.4-16-05 d 5 3.937 1.969 1.000 1.969 0.236 0.374 - 10
TSN10R125M31.7-16-06 d 6 4.921 2.756 1.250 1.969 0.315 0.500 - 12 LMEU1008**
0.630
TSN10R160M38.1-16-07 d 7 6.299 3.937 1.500 2.480 0.394 0.626 - 14 ZNEN-MJ
TSN10R200M50.8-16-08 d 8 7.874 5.315 2.000 2.480 0.551 1.000 4.000 16
TSN12R100M25.4-19-05 d 5 3.937 1.969 1.000 1.969 0.236 0.374 - 10 9
TSN12R125M31.7-19-06 d 6 4.921 2.756 1.250 1.969 0.315 0.500 - 12
0.748 TSN12R160M38.1-19-07 d 7 6.299 3.937 1.500 2.480 0.394 0.626 - 14 LMEU1208**
ZNEN-MJ
TSN12R200M50.8-19-08 d 8 7.874 5.315 2.000 2.480 0.551 1.000 4.000 16
TSN12R250M50.8-19-09 d 9 9.843 5.512 2.000 2.480 0.551 1.000 4.000 18 TAC Mills
TSN15R125M31.7-25-05 d 5 4.921 2.756 1.250 1.969 0.315 0.500 - 10
TSN15R160M38.1-25-06 d 6 6.299 3.937 1.500 2.480 0.394 0.626 - 12 LMEU1509**
0.984
TSN15R200M50.8-25-07 d 7 7.874 5.315 2.000 2.480 0.551 1.000 4.000 14 ZNEN-MJ
TSN15R250M63.5-25-08 d 8 9.843 5.512 2.000 2.480 0.551 1.000 4.000 16
d : Stocked items
Chip thickness “t” Slotting with a slot milling cutter

¡Chip thickness “t” is one of the most important factors for t = 2 x fz x (ae / øDc) x (1 - (ae / øDc)
chip evacuation in slot milling.
¡Therefore, setup feed per tooth (fz) should be calculated fz = t / 2 / (ae / øDc) x (1 - (ae / øDc)
according to chip thickness (t).
øDc : Tool diameter (in)
fz : Feed per tooth (ipt)
ae : Depth of slot (in)
ae

t
fz
t < fz

øDc

Most unmarked items are available on a RFQ basis, contact your sales rep for more information.
