Features
- Each holder comes with the 60 degree H insert
- Accuracy for center inner diameter guaranteed to 0.003mm
- Accuracy after point locking guaranteed to 0.005mm
- Excellent for individual production of various workpieces through different insert shafts
- Heat treated point to HRC 60±2
- Because of the insert shafts the allowed workpiece weight is limited
- Mounting taper of point is 1/10
- Drop forged (HRC 50±2) body
- Shaft borehole for easy, efficient dismounting
- 4-Bearing System: A double row angular contact bearing, a radial ball bearing, and a rear needle roller bearing combine to provide excellent rigidity and superior performance
Product Specifications
| Manufacturer Part Number | 311022 |

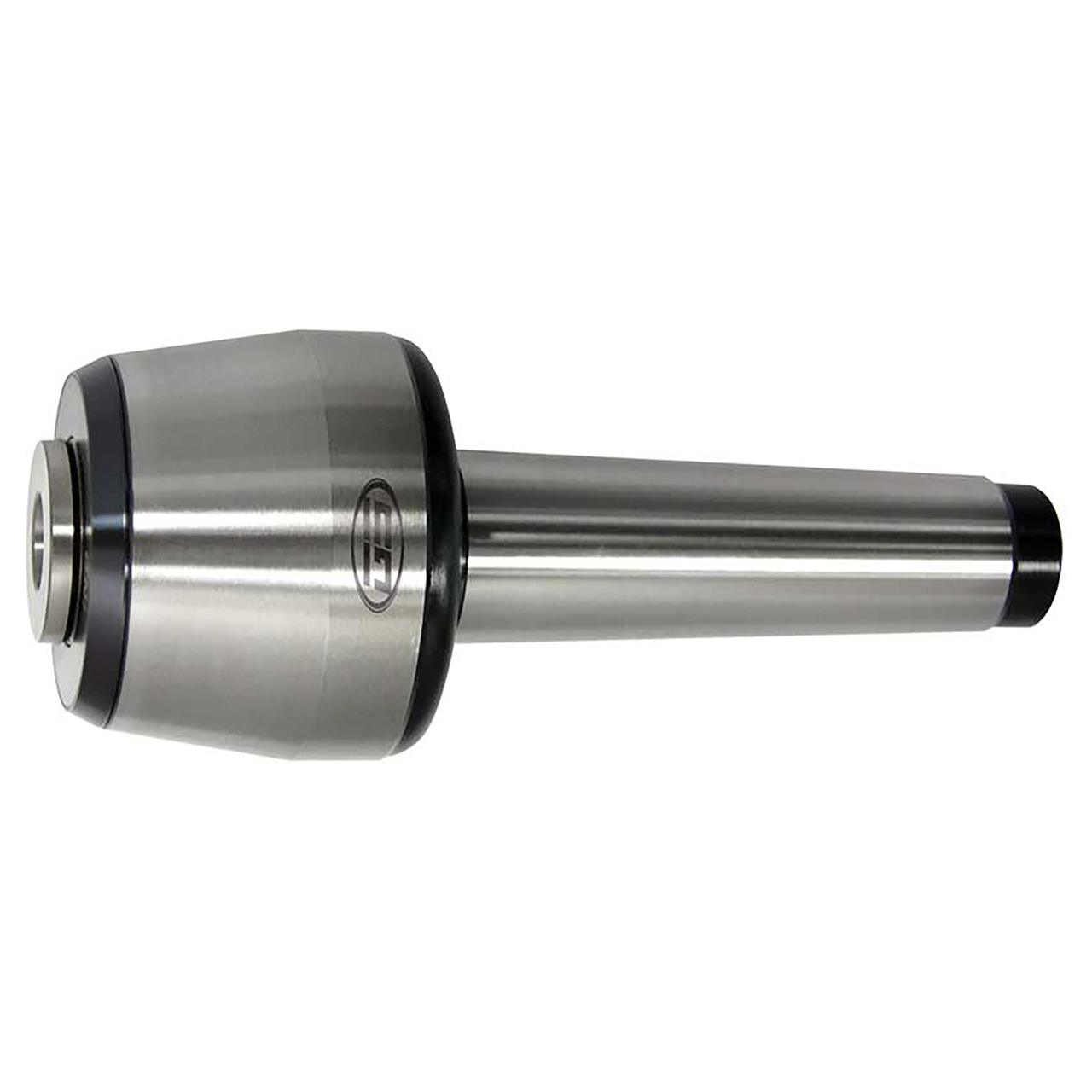

| Product Type | Interchangeable Point Live Centre |
