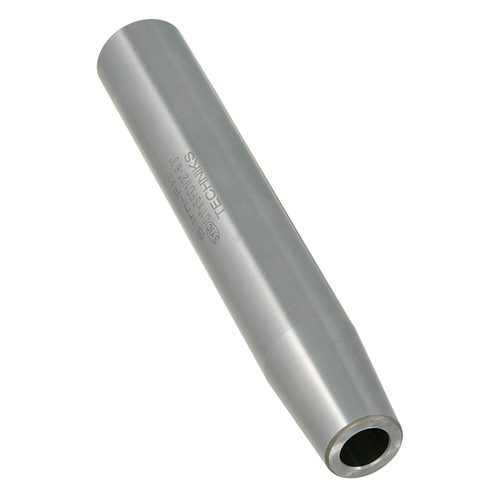

Works with a variety of toolholders to extend the reach of your existing tooling. Techniks ShrinkFIT Extensions are individually lab tested, inspected, and certified for quality. Coolant-thru is a standard feature. Techniks Tool Holders are backed by our 100% Performance Guarantee.
Product Specifications
| UNSPSC Code | 27112809 |
| Nose Dia (in) | 0.394 |
| Nose Dia (mm) | 10 |
| Body Dia (in) | 0.625 |
| Body Dia (mm) | 15.88 |
| Collet Series | N/A |
| Mount | 5/8" Straight Shank |
| Unit of Tool | Inch |
| Shank Range (in) | Exact Size |
| Shank Range (mm) | Exact Size |
| Shank Size (in) | 0.1875 |
| Shank Size (mm) | 4.76 |
| Type | ShrinkFIT Extension |
| Style | Straight Shank |
| Overall Diameter (in) | 0.625 |
| Overall Diameter (mm) | 15.88 |
| Gage Length (in) | - |
| Gage Length (mm) | - |
| Gage Length-Face Contact (in) | N/A |
| Gage Length-Face Contact (mm) | N/A |
| Overall Length (in) | 6.3 |
| Overall Length (mm) | 160 |
| Material | H13 Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Techniks
Hole Diameter (Decimal Inch):
0.1875"
Hole Diameter (mm):
4.76mm
Nose Diameter (Decimal Inch):
0.3940"
Nose Diameter (mm):
10mm
Through Coolant:
No
