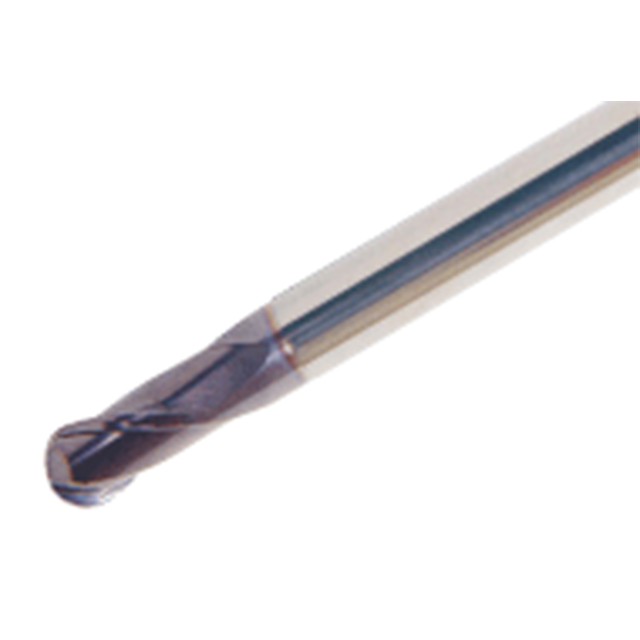

2 flute ball nose rib processing endmill, 30 deg helix angle, for hardened steel up to 65 HRC.
Product Specifications
| Manufacturer Part Number | 5650011 |
| Cutting Diameter (mm) | 10mm |
| Connection Diameter Machine Side (mm) | 10mm |
| Corner Radius (mm) | 5mm |
| Depth of Cut Maximum (mm) | 18mm |
| Overall Length (mm) | 100mm |
| Flute Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 2 |
| Neck Diameter | 9.8 |
| Shank Type | Round |
| Grade | AH750 |
| Cutting Edge Material | Carbide |
| Coating | TiAlN |
| Body Material | Carbide |
| Application | Profile Milling |
