Product Specifications
| EDP Number | 02394CF |
| Diameter (Decimal Inch) | 0.8750" |
| Diameter (Inch) | 7/8" |
| Diameter (mm) | 22.23mm |
| Shank Diameter (Decimal Inch) | 0.8750" |
| Shank Diameter (Inch) | 7/8" |
| Shank Diameter (mm) | 22.23mm |
| Length of Cut (Decimal Inch) | 2.5000" |
| Length of Cut (Inch) | 2-1/2" |
| Length of Cut (mm) | 63.50mm |
| Overall Length (Decimal Inch) | 4.7500" |
| Overall Length (Inch) | 4-3/4" |
| Overall Length (mm) | 120.65mm |
| Series | E2080 |
| Shank Style | Flat |
| Helix Angle | 30 Degree |
| Number of Flutes | 2 |
| Coating | TiAIN F |
| Cut Type | Center Cutting |
| Cutting Direction | Right |

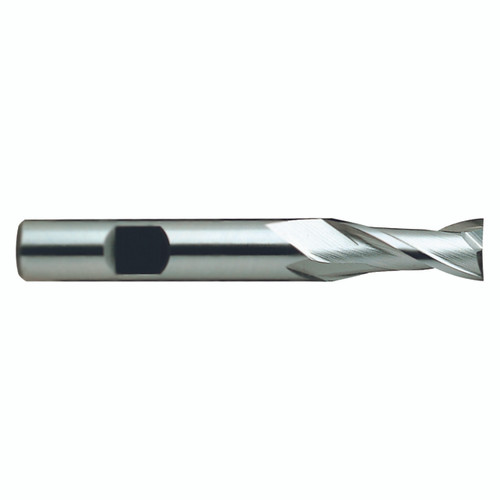

| Type | Square End Mill |
| Application | P |
| Material | HSSCo8 |
