Product Specifications
| EDP Number | 05109HF |
| Diameter (Decimal Inch) | 0.7500" |
| Diameter (Inch) | 3/4" |
| Diameter (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (mm) | 19.05mm |
| Length of Cut (Decimal Inch) | 3.0000" |
| Length of Cut (Inch) | 3" |
| Length of Cut (mm) | 76.20mm |
| Overall Length (Decimal Inch) | 5.2500" |
| Overall Length (Inch) | 5-1/4" |
| Overall Length (mm) | 133.35mm |
| Number of Flutes | 4 |
| Helix Angle (Degree) | 30 Degree |
| Material | HSS |
| Coating | TiAlN-Futura |
| Shank Style | Flat |
| Cut Type | End Cutting |
| Corner Type | Square End |
| Cutting Direction | Right Hand |
| Application | P |
| Series | E1034 |
| End Type | Single End |
| Length Type | Long |

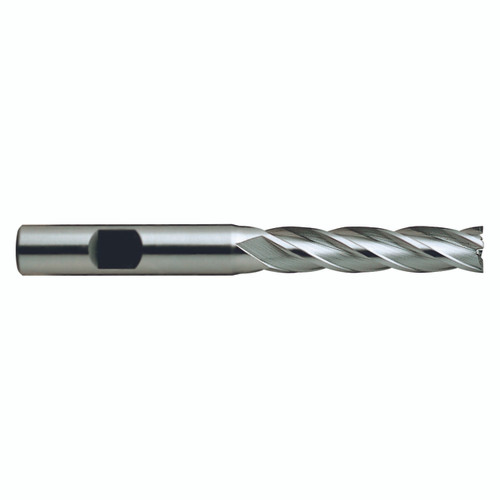

| Product Type | Square End Mill |
