Product Specifications
| EDP Number | 07196HF |
| Diameter (Decimal Inch) | 1.2500" |
| Diameter (Inch) | 1-1/4" |
| Diameter (mm) | 31.75mm |
| Shank Diameter (Decimal Inch) | 1.2500" |
| Shank Diameter (Inch) | 1-1/4" |
| Shank Diameter (mm) | 31.75mm |
| Length of Cut (Decimal Inch) | 2.0000" |
| Length of Cut (Inch) | 2" |
| Length of Cut (mm) | 50.80mm |
| Overall Length (Decimal Inch) | 4.5000" |
| Overall Length (Inch) | 4-1/2" |
| Overall Length (mm) | 114.30mm |
| Number of Flutes | 6 |
| Helix Angle (Degree) | 30 Degree |
| Material | HSS |
| Coating | TiAlN-Futura |
| Shank Style | Flat |
| Cut Type | Center Cut |
| Corner Type | Square End |
| Cutting Direction | Right Hand |
| Application | P |
| Series | E1042 |
| End Type | Single End |
| Length Type | Regular |

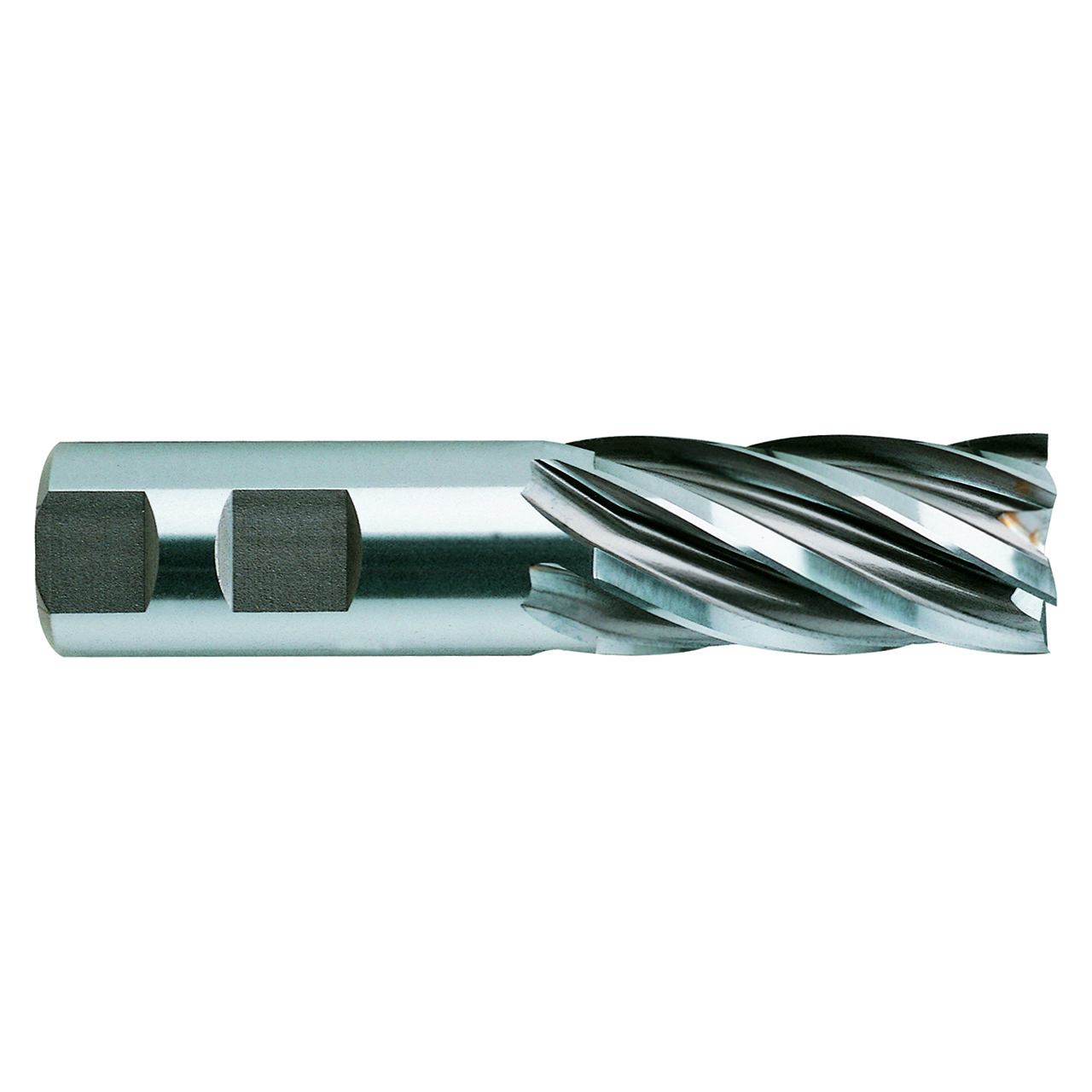

| Product Type | Square End Mill |
