Features
- Excellent cutting qualities on aluminum, copper
- Increased tool life and superior chip evacuation
- Mirror face-excellent surface finish.
- Mill Diameter Tolerance: 0-.02"; Shank Diameter Tolerance: H6

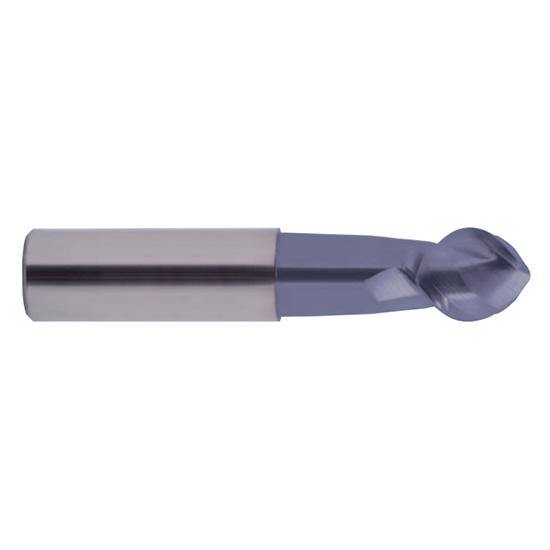

Product Specifications
| Brand | YG1 |
| Mill Diameter (mm) | 20mm |
| Shank Diameter (mm) | 20mm |
| Length of Cut (mm) | 17mm |
| Overall Length (mm) | 100mm |
| Number of Flutes | 2 |
| Finish/Coating | TiCN |
| Tool Material | Carbide |
| Center Cutting (yes/no) | Yes |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right |
| MPN | EG910200 |
| Helix Angle | 50° |
| Tolerance-Cutting Diameter | 0-.02" |
| Tolerance-Shank Diameter | H6 |
| Length Type | Standard |
| Coolant Through | No |
| Shank Style | Straight |
| Series | EG910 |
| Country of Origin | Korea |
| End Type | Plain |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (mm):
20mm
Shank Diameter (mm):
20mm
Length of Cut (mm):
17mm
Overall Length (mm):
100mm
Number of Flutes:
2
Finish/Coating:
TiCN
Tool Material:
Carbide
Center Cutting:
Yes
Single or Double End:
Single
