Product Specifications
| Diameter (Decimal Inch) | T7436563 |
| Diameter (Decimal Inch) | 0.6032" |
| Diameter (mm) | 15.32mm |
| Overall Length (Decimal Inch) | 3.8100" |
| Overall Length (mm) | 96.77mm |
| Thread Length (Decimal Inch) | 1.8100" |
| Thread Length (mm) | 45.97" |
| Square Length (Decimal Inch) | 1.8100" |
| Square Length (mm) | 45.97" |
| Shank Diameter (Decimal Inch) | 0.4800" |
| Shank Diameter (mm) | 12.19mm |
| Square Size (Decimal Inch) | 0.3600" |
| Square Size (mm) | 9.14mm |
| Drill Size (Decimal Inch) | 0.5236" |
| Drill Size (mm) | 13.30mm |
| Useable Length (Decimal Inch) | 1.8100" |
| Useable Length (mm) | 45.97mm |
| Length/Diameter | 2.0xD |
| Coolant Through | No |
| Tap Type | SPPT |
| Number Of Flutes | 3 |
| Size | 1/2 |
| Pitch | 13 TPI |
| Thread Series | UNC |
| Pitch Limit | H3 |
| Chamfer Type | Plug |
| Chamfer Length | 4P-5P |
| Finish | Bright |
| Material | HSS |
| Blank Standard | 322 |

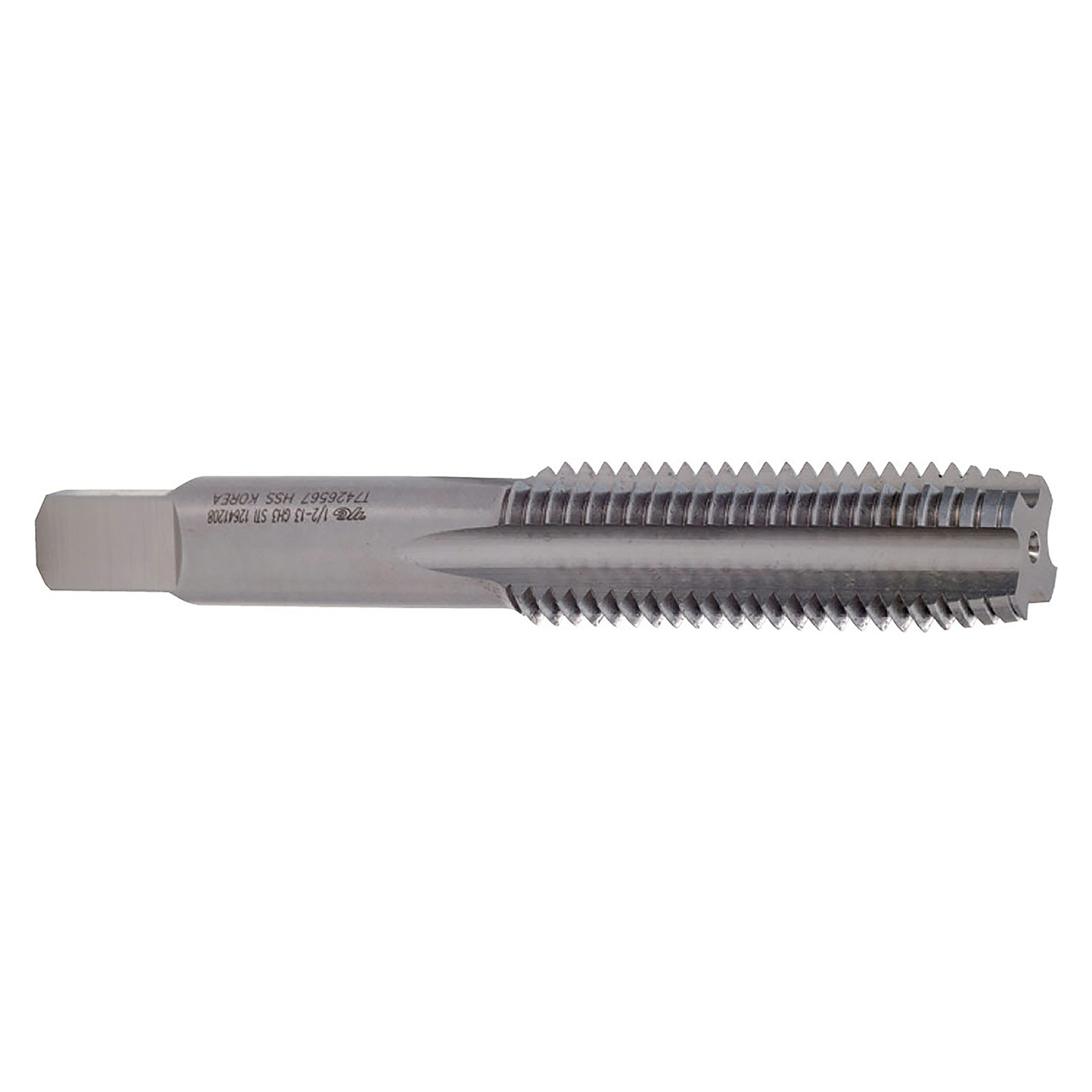

| Product Type | Spiral Point Tap |
